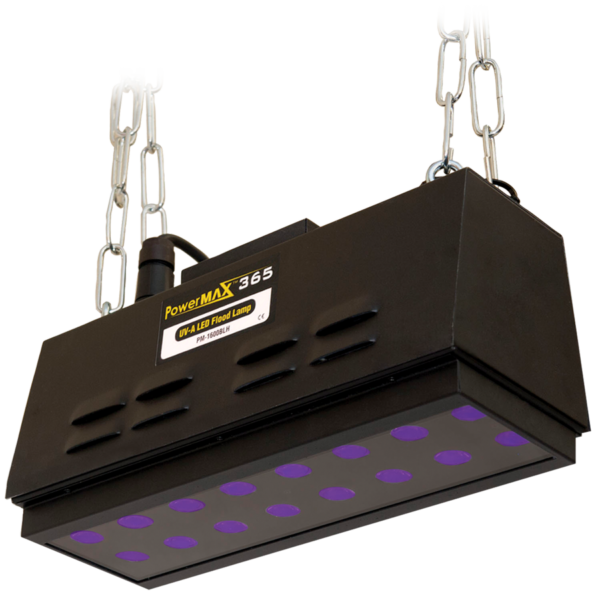

Product Information Features:
- Choice of two high-intensity models with a nominal steady-state UV-A intensity as high as 8,000 μW/cm2 or two standard-intensity models with a maximum UV-A intensity of 4,500 μW/cm2 at 15 inches (38 cm)
- Large coverage area of 15 inches by 6 inches (38 cm x 15 cm), with a minimum UV-A intensity of 2,000 μW/cm2
- Low visible light emission – less than 2 foot-candles (22 lux)
- Easily mountable for overhead inspection or in-line applications
- Built-in fans keep LEDs cool to maintain optimum light output during extended use
- Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI
- Customizable! Multiple lamp units can be “ganged” together longitudinally or back-to-back for a larger coverage area to meet your specific inspection requirements
- Both high- and standard-intensity versions available with or without black light filter
- Standard-intensity lamps meet ASTM UV-A intensity and wavelength specifications for FPI and MPI, and come with a certificate of compliance for both wavelength and output measurements
Available in four models to meet your specific inspection needs: high-intensity and standard intensity versions, each with or without a black light filter. Ideal for NDT inspection booths, fluorescent penetrant and magnetic particle inspection, screening of fluorescent particles, wash station inspection and many other applications requiring maximum uniformity of UV-A coverage over a large area.
Standard Intensity Models
PowerMAX™ 365 Series UV-A LED panel flood lamps are also available in two standard-intensity models that are designed for NDT inspection applications requiring limited UV-A output. Both versions address aerospace industry concerns. The PM-1600UV is equipped with a clear glass filter and provides a nominal steady-state UV-A intensity of 4,500 μW/cm2(maximum) at 15 inches (38 cm). The PM-1600BL is equipped with a black light filter that reduces the output of wavelengths longer than 400 nm. It provides a nominal steady-state UV-A intensity of 4,000 μW/cm2 (maximum) at 15 inches (38 cm). High Intensity Models PowerMAX™ 365 Series UV-A LED panel flood lamps are available in two high-intensity models that are specifically designed for NDT inspection applications requiring high UV-A output. The PM-1600UVH is equipped with a clear glass filter and provides a nominal steady-state UV-A intensity of 8,000 μW/cm2at 15 inches (38 cm). The PM-1600BLH is equipped with a black light filter that reduces the output of wavelengths longer than 400 nm. It provides a nominal steady-state UV-A intensity of 6,500 μW/cm2 at 15 inches (38 cm).
