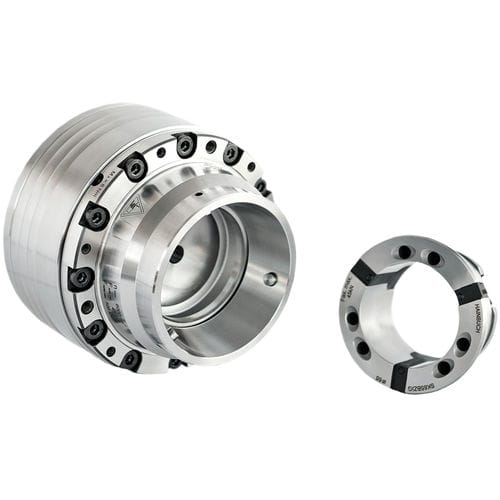

Lower mass The »mini« series really shines with a mass reduced by as much as 30 %, and a chuck diameter that is reduced by 1/3. This means reduced energy consumption and better tool accessibility. Naturally, additional adaptation elements may also be used with the SPANNTOP mini. An additional ring enables use of the adaptation devices that are also used with the SPANNTOP nova. Reduced interference contour Thanks to the reduced interference contour, it is easier to choose the tool that you need. Now it can also be shorter and more stable – on the main and sub spindles. Particularly in the case of limited installation space and in series operation, SPANNTOP mini is ideal: Lower energy consumption, dynamic spindle acceleration, and shorter cycle times reduce the costs per workpiece. Minimalism that pays off!
Технические характеристики
CharacteristicsTypeautomaticOther characteristicsworkpiece, dead length, pull-back, smallRotational speed
5,000 rpm, 5,500 rpm, 7,000 rpm, 8,000 rpm (31,415.93 rad.min-1)
Gripping force
Max.: 150 kN
Min.: 70 kN
Outer diameter
Max.: 280 mm (11 in)
Min.: 132 mm (5 in)
