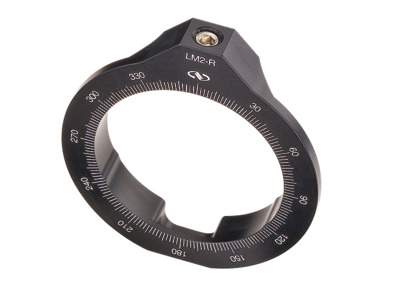

The LM2-R Optic Cell Rotation Mount forms a convenient optical mounting system that speeds your experimental work when used with LH2 Series Optical Cell Holders. Lenses or polarizers are mounted in a LH2 cell (not included) with a Delrin retainer ring, protecting them from fingerprints and scratches. Cell mounted optics are held in the LM1-R mount by a spring-loaded detent, allowing them to be quickly removed and replaced. Additionally, optics can be accurately rotated using graduations marked every 2 degrees. The LH2 holder cells are sold separately.
Технические характеристики
- Type Lens Positioner
- Angular Range 360°
- Drive Type Manual
- Graduations 2°
- Optical Axis Height 38.1 mm
- Use LH2 Lens Cell Holders
- Adjustments Z
- Thread Type 8-32 (M4) CLR
