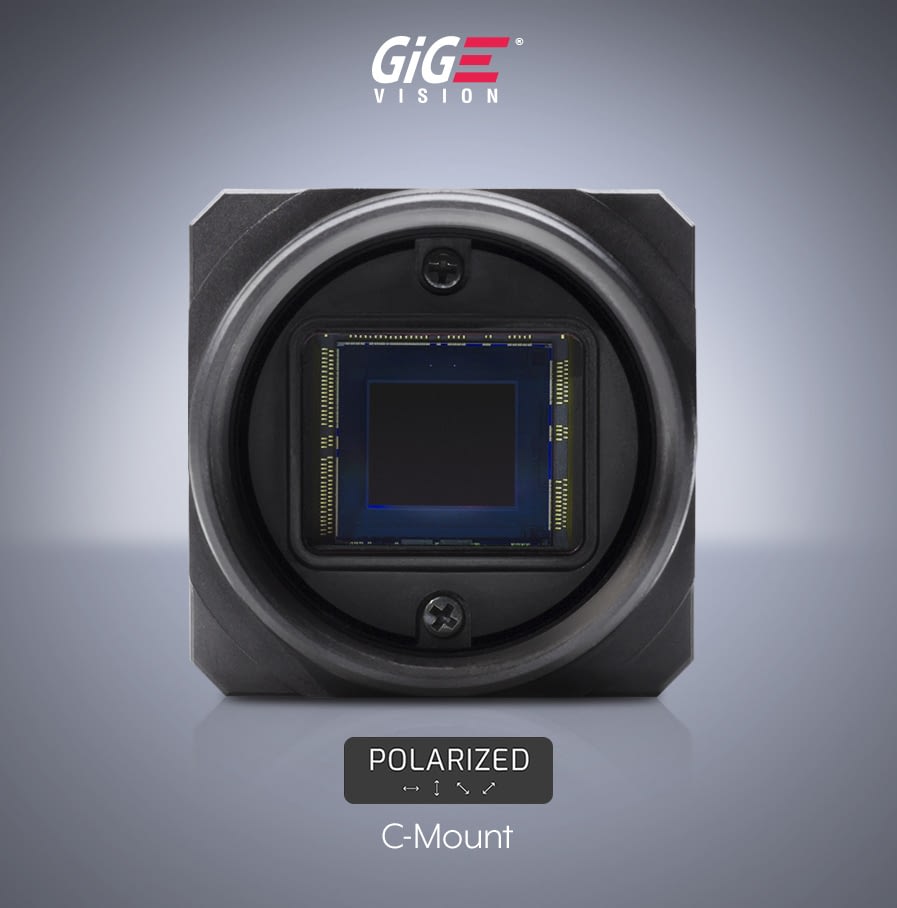

Поляризационная модель Triton 5.0 MP (IMX264MZR/MYR)

Sensor
Sony IMX264MZR Sony IMX264MYR

Resolution
5.0 MP, 2448 x 2048 px

Frame Rate
22 FPS

Model SKUs	Chroma	Lens Mount	GigE Vision Connector	Included Accessory
TRI050S1-QC	Color	C-mount	M12	M8 GPIO IP67 Cap
TRI050S1-PC	Mono	C-mount	M12	M8 GPIO IP67 Cap

Технические характеристики

[wpie_function custom_function=»cleanerall» data=»

Sensor Properties
Sensor Model	Sony IMX264MZR CMOS (mono) Sony IMX264MYR CMOS (color) Polarized four different directional polarizing filters (0°, 90°, 45°, and 135°)
Shutter Type	Global
Sensor Size	11.1 mm (Type 2/3)
Resolution	2448 x 2048 px, 5.0 MP
Pixel Size	3.45 µm (H) x 3.45 µm (V)
Framerate*	22 FPS (24 FPS) @ 5.0 MP

Physical Properties
Dimensions	29 x 29 x 45 mm
Lens Mount	C-Mount
Weight	67 g
Ingress Protection	IP67 (For IP67 protection Triton must be used with IP67 lens tube and cables)

Interface and Power Information
Digital Interface	1000BASE-T GigE M12 (8 Pin X-Coded), PoE
GPIO Interface	8 pin M8 connector
Opto-Isolated I/O Ports	1 input (2.5V-24V and 10.5V-24V), 1 output
Non-Isolated I/O Ports	2 bi-directional
Power Requirement	PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption	3.1W via PoE, 2.5W when powered externally

Imaging Properties
Image Buffer	128 MB
Image Processing	Gain
Pixel Formats	Mono8/12/16, PolarizeMono8/12/16 (Mono) BayerRG8/12/16, PolarizeMono8/12/16 (Color)
Image Modes	Horizontal and vertical binning, ROI, horizontal and vertical flip
ADC	12 bit
Gain Range	0 dB to 48 dB analog and digital
Exposure Time	33.45 μs to 10 s (Normal) / 1.04 μs to 14.44 μs (Short Mode)

Camera Features
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event Data	Acquisition start/end, exposure start/end, line rise/fall, error
Counter Timer	2 counters and 2 timers
Sequencer	Exposure time, gain
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
Standard	GigE Vision v2.0
Compliance	CE, FCC, RoHS, REACH, WEEE
Storage Temperature	-30 to 60°C
Operating Temperature	-20 to 55°C ambient
Humidity	Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration	DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6
Industrial EMC Immunity	DIN EN 61000-6-2
Warranty	3 year

EVMA 1288 Results
Dynamic Range	71.34 dB
SNR (Max)	40.14 dB
Saturation Capacity	10318 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	5.28 γ
Temporal Dark Noise	2.16 e-
Gain	0.369 DN / e-
Dark Current	3.51 e- / s
Dark Signal Non-Uniformity	0.71 e-
Photo Response Non-Uniformity	1.66 %
Linearity Error Max/Min	0.22/-0.50 %

EVMA 1288 Results
Dynamic Range	71.67 dB
SNR (Max)	40.23 dB
Saturation Capacity	10538 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	6.116 γ
Temporal Dark Noise	2.11 e-
Gain	0.371 DN / e-

<td "]

Lens Manufacturer Part #	Lens Description	0.4MP TRI004S	1.6MP TRI016S	2.3MP TRI023S	2.8MP TRI028S	3.2MP TRI032S	5.0MP TRI050S	5.0MP TRI051S	5.0MP TRI050S-PQ	5.4MP TRI054S	6.3MP TRI064S	7.1MP TRI071S	8.1MP TRI081S	8.9MP TRI089S	12.2MP TRI122S	12.3MP TRI120S	12.3MP TRI124S	16.2MP TRI162S	20.0MP TRI200S	20.4MP TRI204S	24.5MP TRI245S	2K TRI02KA
Edmund Optics UC #33-300	C-Mt 1/2″ 4mm f/1.8	Good	Good	Good
Edmund Optics UC #33-301	C-Mt 1/2″ 6mm f/1.85	Good	Good	Good
Edmund Optics UC #33-307	C-Mt 1/2″ 8mm f/1.8	Good	Good	Good
Edmund Optics UC #33-303	C-Mt 1/1.8″ 12mm f/1.8	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics UC #33-304	C-Mt 1/1.8″ 16mm f/1.8	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics UC #33-305	C-Mt 1/1.8″ 25mm f/1.85	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics C #67-709	C-Mt 1/1.8′ 6mm, f1.4	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics C #58-000	C-Mt 2/3′ 8.5mm, f/1.3	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #58-001	C-Mt 2/3′ 12mm, f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-870	C-Mt 2/3′ 16mm, f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-871	C-Mt 2/3′ 25mm, f/1.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-872	C-Mt 2/3′ 35mm, f/1.65	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-873	C-Mt 2/3′ 50mm, f/2	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL060C	C-Mt 5MP 2/3″ 6mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL080C	C-Mt 5MP 2/3″ 8mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL120C	C-Mt 5MP 2/3″ 12mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL160C	C-Mt 5MP 2/3″ 16mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL250C	C-Mt 5MP 2/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF6XA-5M	C-Mt 5MP 2/3″ 6mm f/1.9	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF8XA-5M	C-Mt 5MP 2/3″ 8mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF12XA-5M	C-Mt 5MP 2/3″ 12mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF16XA-5M	C-Mt 5MP 2/3″ 16mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF25XA-5M	C-Mt 5MP 2/3″ 25mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon CF-ZA-1S#CF8ZA-1S	C-Mt 23MP 1.2″ 8mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Vignette	Good
Fujinon CF-ZA-1S #CF12ZA-1S	C-Mt 23MP 1.2″ 12mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF162ZA-1S	C-Mt 23MP 1.2″ 16mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF252ZA-1S	C-Mt 23MP 4/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF352ZA-1S	C-Mt 23MP 4/3″ 35mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF502ZA-1S	C-Mt 23MP 4/3″ 50mm f/2.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPY #V0828-MPY2	C-Mt 12MP 1.1″ 8mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V1228-MPY2	C-Mt 12MP 1.1″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V1628-MPY2	C-Mt 12MP 1.1″ 16mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V2528-MPY	C-Mt 12MP 1.1″ 25mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V3528-MPY	C-Mt 12MP 1.1″ 35mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPT #F1228-MPT	C-Mt 45MP 4/3″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
