Полный комплект механических трехточечных/двухточечных нутрометров Холтеста

Полные наборы механических трехточечных внутренних микрометров Mitutoyo Holtest включают в себя холтесты, способные измерять внутренние размеры от 2 мм до 200 (метрические) и от 0,08 до 8 дюймов (дюймовые).

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!

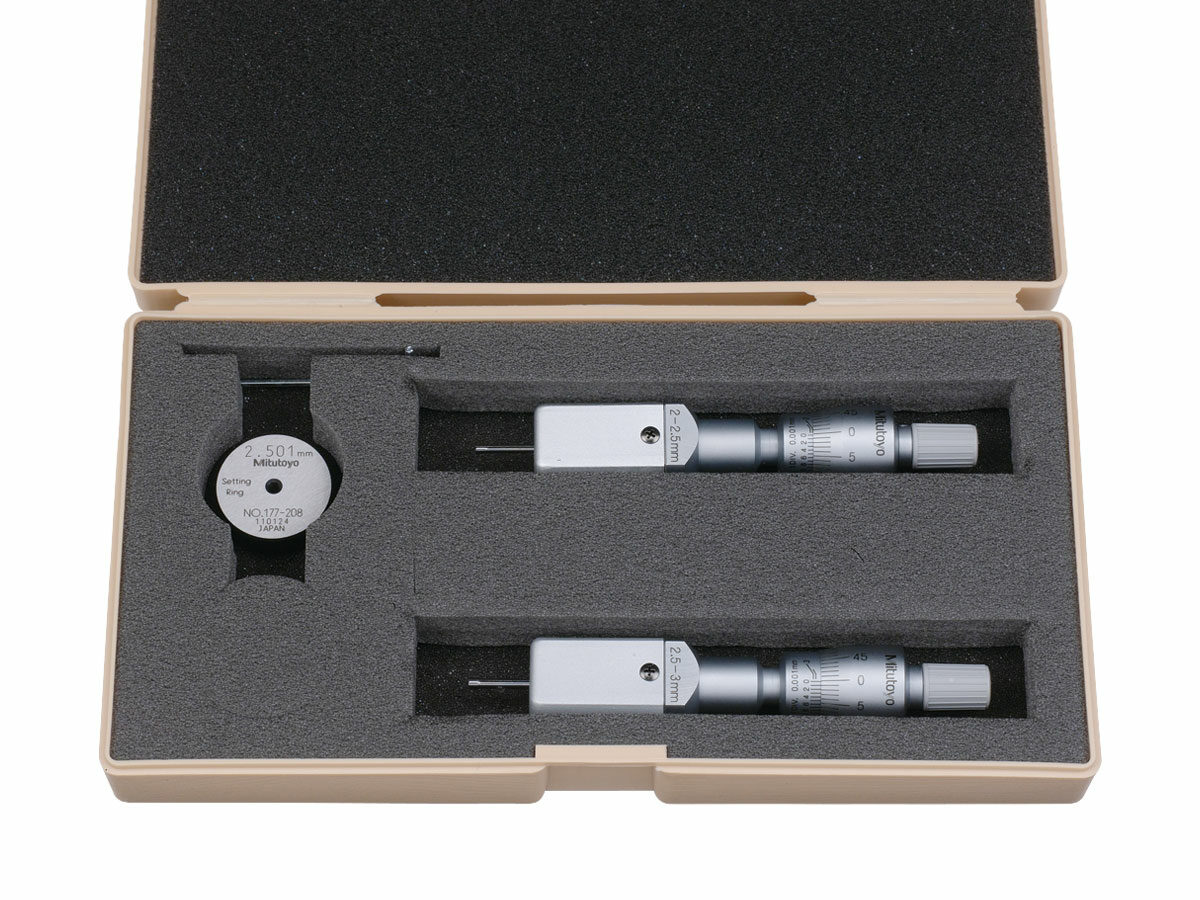

The Mitutoyo mechanical Holtest internal micrometer set includes complete gages (micrometer head units and measuring heads) for each size. Three hardened-steel anvils evenly spaced at 120° allow for true alignment of the axis bore for accurate, easily repeatable measurements. The holtest»s ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements.

  • Available in Metric and Inch sets
  • Optional extension rod allows for measuring deep holes
  • Scale on thimble and sleeve is laser etched for easier reading in all conditions
  • Holtests up to 100mm / 4″ diameter measurements supplied in a fitted plastic case
  • Holtests over 100mm / 4″ diameter measurements supplied in a wooden case

Order No.:Product Image:Contact Point:Measuring Method:Units:Range:Graduation:Accuracy:Setting rings included:Set/s:Individual Range:Mass:Remarks:Extension Rod (Optional):Accessories:

Order No.:

368-271TiN coatingThree-point methodInch2.5-3″0.0002″±0.0002″450g952623Accessories
368-272TiN coatingThree-point methodInch3-3.5″0.0002″±0.0002″490g952623Accessories
368-273TiN coatingThree-point methodInch3.5-4″0.0002″±0.0002″500g952623Accessories
368-274TiN coatingThree-point methodInch4-5″0.0002″±0.00025″1050g952623Accessories
368-275TiN coatingThree-point methodInch5-6″0.0002″±0.00025″1120g952623Accessories
368-276TiN coatingThree-point methodInch6-7″0.0002″±0.00025″1190g952623Accessories
368-277TiN coatingThree-point methodInch7-8″0.0002″±0.00025″1260g952623Accessories
368-278TiN coatingThree-point methodInch8-9″0.0002″±0.0003″1420g952623Accessories
368-279TiN coatingThree-point methodInch9-10″0.0002″±0.0003″1580g952623Accessories
368-280TiN coatingThree-point methodInch10-11″0.0002″±0.0003″1600g952623Accessories
368-281TiN coatingThree-point methodInch11-12″0.0002″±0.0003″1690g952623Accessories
368-906CarbideTwo-Point methodMetric2 — 3mm0.001mm±2µm2.52-2.5, 2.5-3mm
368-907CarbideTwo-Point methodMetric3 — 6mm0.001mm±2µm4, 53-4, 4-5, 5-6mm
368-911TiN coatingThree-point methodMetric6 — 12mm0.001mm±3µm8, 106-8, 8-10, 10, 12mmwith extension rod
368-912TiN coatingThree-point methodMetric12 — 20mm0.005mm±3µm1612-16, 16-20mmwith extension rod
368-913TiN coatingThree-point methodMetric20 — 50mm0.005mm±3µm25, 4020-25, 25-30, 30-40, 40-50mmwith extension rod
368-914TiN coatingThree-point methodMetric50 — 100mm0.005mm±3, 4µm63, 8762-75, 75-88, 87-100, 50-65mmwith extension rod
368-915TiN coatingThree-point methodMetric100 — 200mm0.005mm±5µm125, 175100-125, 125-150, 150-175, 175-200mmwith extension rod
368-916TiN coatingThree-point methodInch.275-0.5″0.0001″±0.0001″.35, .5.275-.35, .35-.425, .425-.5″with extension rod
368-917TiN coatingThree-point methodInch5-0.8″0.0002″±0.00015″.65.5-.65, .65-.8″with extension rod
368-918TiN coatingThree-point methodInch8-2″0.0002″±0.00015″.1, 1.6.8-1, 1-1.2, 1.2-1.6, 1.6-2″with extension rod
368-919TiN coatingThree-point methodInch2-4″0.0002″±0.00015, 0.0002″2.5, 3.52-2.5, 3-3.5, 3.5-4, 2.5-5″with extension rod
368-920TiN coatingThree-point methodInch4-8″0.0002″±0.00025″.5, 75-6, 6-7, 7-8, 3-5″with extension rod
368-926CarbideTwo-Point methodInch.08-0.12″0.0001″±0.0001″.1.08-.1, .1-.12″
368-927CarbideTwo-Point methodInch12-0.28″0.0001″±0.0001″.16, .24.12-.16, .16-.2, .2-.24, .24-.28″

368-271
368-272
368-273
368-274
368-275
368-276
368-277
368-278
368-279
368-280
368-281
368-906
368-907
368-911
368-912
368-913
368-914
368-915
368-916
368-917
368-918
368-919
368-920
368-926
368-927

Технические характеристики

Technology:Mechanical
Ratchet/Thimble:Ratchet Stop
