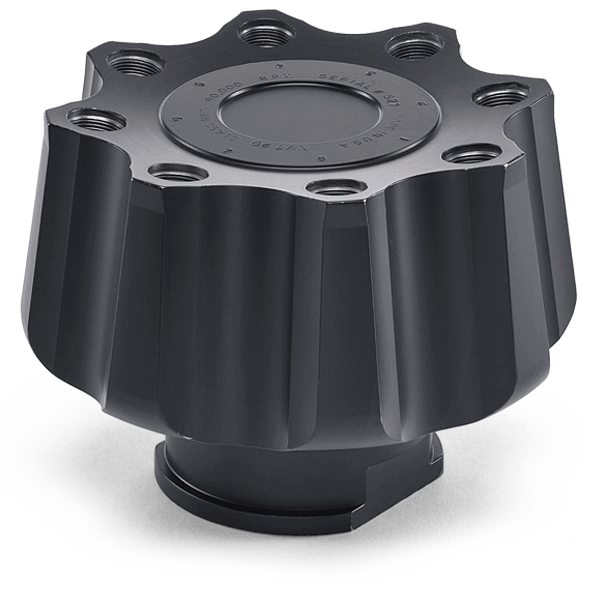

NVT 90 Titanium Rotor Package
Note: Non-precipitating solutions up to 1.7 g/mL in density can be run in this rotor without a reduction in rotor speed. For speed reductions for CsCl prescription, refer to the rotor manual. Major applications: Separations of plasmid or mitochondrial DNA in CsCl gradients in 2.5 — 4 hours.
For use in Optima-Series ultracentrifuges and/or instruments classified: HRS
Технические характеристики
| Platform | Floor Prep |
| Rotor Type | Near-Vertical (Ultracentrifugation) |
| Angle | 8 |
| Maximum RPM | 90,000 rpm |
| k-Factor | 10 |
| Number of Tubes | 8×5 mL / 13×51 mm(8×5 mL / 1×2 in) |
| Caps and Spacers | 342883 │ 345827 │ 362198 |
| Nominal Capacity | 41 mL |
| rMAX | 71.1 |
| rMIN | 52.4 |
| rAV | 61.8 mm |
| BioSafe | Bio-Enhanced |
| Materials | Titanium |
| Package Quantity | 1 |
