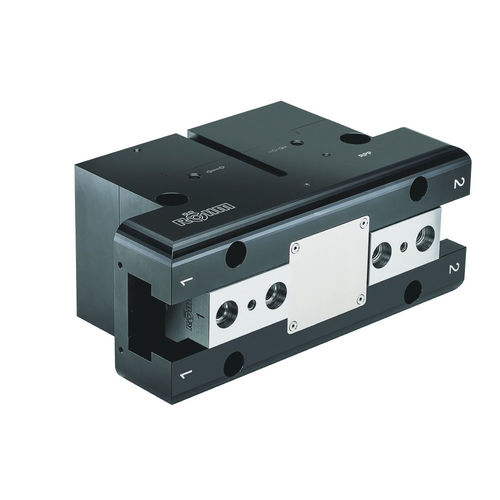

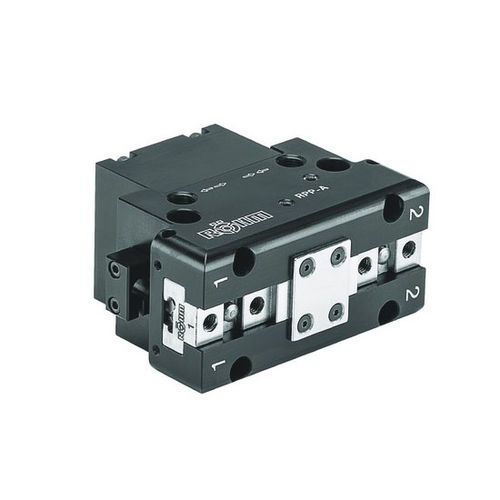

• Available from sizes 50 to 380, each in two stroke variants. Optionally with gripping force safety device and/or dirt cover. • Fastening of the gripper fingers via centering sleeves (included in the scope of delivery). • Centrically clamping in compact design made of high-strength, hard-coated aluminum alloy • All functional parts made of hardened steel for maximum service life • Wedge hook principle with pneumatic actuation (hydraulic actuation available on request) • Position monitoring with inductive or magnetic position sensors • Optionally available with FKM seals for higher temperatures up to 150°C (on request) • Integrable purge air connection to prevent contamination Universal gripping of round and angular workpieces with two parallel gripper fingers for handling with robots or portals. • High gripping force with low dead weight and compact design • High torque support for using long gripper fingers thanks to elongated jaw guide • Maximum flexibility thanks to versatile connection and fastening options • Long service life and high reliability thanks to specially ground base jaws in proven T-slot guide
Технические характеристики
CharacteristicsOperationpneumatic, hydraulicTypeparallelNumber of jaws2-jawApplicationfor industrial robotsOptionscompact, high clamping forceGrip strength
Min.: 3,080 N
Max.: 6,950 N
Stroke
14 mm, 25 mm (0.551 in)
