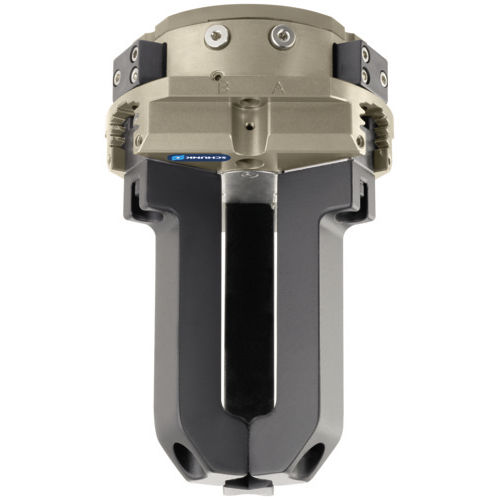

Universal 3-finger centric gripper with high gripping force and maximum moments due to multi-tooth guidance Field of application multi- purpose thanks to a diverse range of accessories. Can also be used in fields of application with special requirements to the gripper (temperature, chemical resistance, dirt, and many more). Advantages – Your benefits Robust multi-tooth guidance for precise handling High maximum moments possible suitable for using long gripper fingers Wedge-hook design for high power transmission and synchronized gripping Air supply via hose-free direct connection or screw connections for flexible pressure supply in all automated systems Comprehensive sensor accessory program for versatile querying possibilities and stroke position monitoring Manifold options for special optimization for your specific case of application (dust-tight, high-temperature, corrosion-protected, and much more) Fastening at one gripper side in two screw directions for universal and flexible gripper assembly
Технические характеристики
CharacteristicsOperationpneumaticTypeconcentricNumber of jaws3-jawOptionsself-centeringGrip strength
Min.: 255 N
Max.: 57,300 N
Stroke
Min.: 2 mm (0.079 in)
Max.: 45 mm (1.772 in)
