Features:
- PM6303A Automatic RCL meter
- Easy-to-use, at-a-glance display of relevant information
- 0.25 % basic accuracy
- 2V DC internal bias
- Automatic zero trimming
- Front-panel test posts for immediate 4-wire measurements
AC test mode
- Test frequency: 1 kHz
- Test frequency accuracy: 0.025%
- Test signal level: 2V via 400? source
- Basic measurement accuracy: 0.25% ± 1 digit
- DC bias Internal: 2V
Environmental conditions
- Operating temparature: 0°C to 50°C
- Storage temparature: -40°C to 70°C
- Power requirements: 100/120/220/240V, ± 10%
- Line frequency: 50 to 100 Hz
- Power consumption: 16 VA
- EMC According to CE regulation 89/336: Emission ccording to EN 55011 Group 1 Class B, respectively CISPR 11, Immunity according to EN 50082-1, inclusive IEC 801-2,-3,-4
- Safety: According to CEregulation 73/23 EN61010-1 CAT II, Pollution Degree: 2
- Warm-up time: 5 minutes

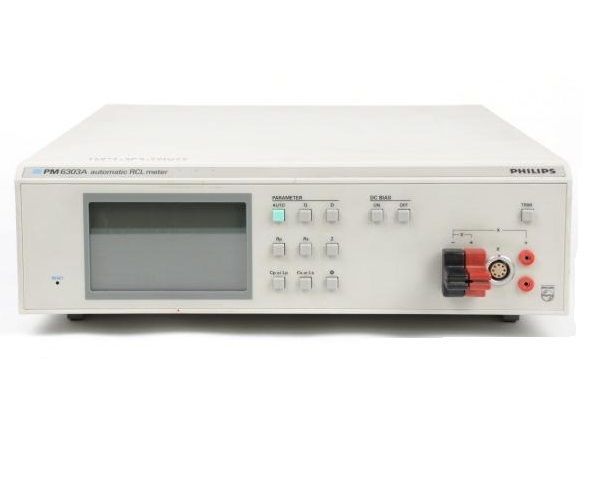

The Philips PM6303A is a 1 kHz Automatic LCR Meter.
Технические характеристики
| Manufacturer | Philips |
|---|---|
| Condition | Used |
| Frequency | 1 kHz |
