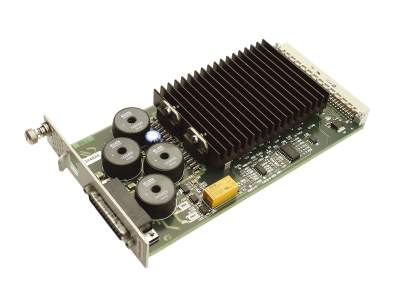

The XPS-DRV11 is a software configurable universal digital driver card that has been optimized to perform with the most Newports and other companies DC brush, Linear and Stepper motor positioners. The XPS-DRV11 can supply PWM output of up to 100 kHz with a maximum output current of 6 A @ 47 V for brushed and linear motors, and 3 Amps per phase @ 47 V for stepper motors. The XPS-DRV11 is capable to drive bipolar stepper in microstepping mode and perform an emergency stop when an error occurs. Motor initialization is accomplished through a proprietary and patented method that results in insignificant stage motion, without the need for hall effect or other sensors.
Технические характеристики
- Drive Type Stepper, DC, and Linear
- Maximum Current 6 A peak per channel3 A continuous per channel
- Maximum Power Consumption 600 W peak300 W continuous
- Connector Type DB25
- Number of Axis 1
- Use XPS
