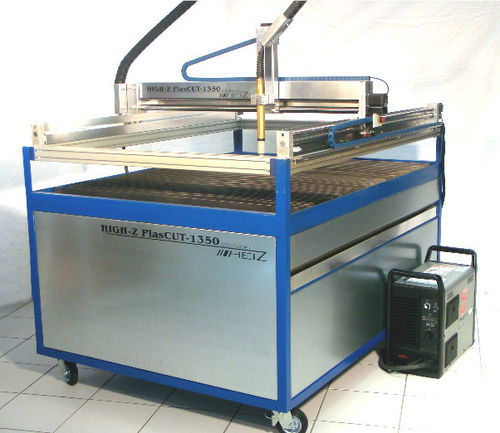

The plasma cutter machine High-Z PlusCut-1350 comes with a powerful Hypertherm Powermax plasma torch, a connection part for the suction and a rack on wheels. With the removable High-Z machine you can also mill wood, metal and plastic. Buying the plasma cutting machine you get a system, which you can use for milling and engraving as well and which is unsurpassed in this price category. The plasma arc cutting equipment High-Z PlasCUT-1350 is suited for plasma arc torching as well as milling wood, PVC, etc. Delivery is complete with above shown base frame including connecting pieces and two pull-out drawers for water fillings. With a movement speed of a maximum of 2.5 meters per minute during operation, it processes all sliceable metallic materials up to 16 mm. The ideal software to work with our plasma cutter is SheetCAM TNG. Connection for exhaust systems available on the backside. Wavy-arranged, exchangeable supporting plates. Stable construction. Usable for milling works on wood, PVC, etc. Can be loaded from the side or from the top without any problem. Due to the contact surface of 1650 x 1200 ideal for plate standard format of 1500 x 3000, cut in three parts. Traverse paths of the machine: Plasma operation: 1350 x 1050mm. Milling operation:1400 x 1050mm. In a few weeks is also available for about 1,600 euros, an electronic height control system, which allows to cut corrugated iron sheets. Features High-Z PlasCUT-1350 plasma cutting machine Technical data of included microstep controller: 4-channel control Power up to 4 x 2.4 A Micro pacing 1/8-Step / 1600 steps / rev. 4 ports for 4 stepper motors
Технические характеристики
CharacteristicsTechnologyplasmaMaterialfor aluminum, for stainless steel, for steel, for copper, for brassProduct handledprofileControl typeCNCAssociated functionengraving, millingConfiguration3-axisX travel
1,350 mm, 1,400 mm (53 in)
Y travel
1,050 mm (41 in)
Z travel
110 mm (4 in)
Cutting speed
12,000 mm/min (7.874 in/s)
Overall length
1,800 mm (71 in)
Overall width
1,400 mm (55 in)
Height
2,000 mm (79 in)
Weight
110 kg (242.51 lb)
