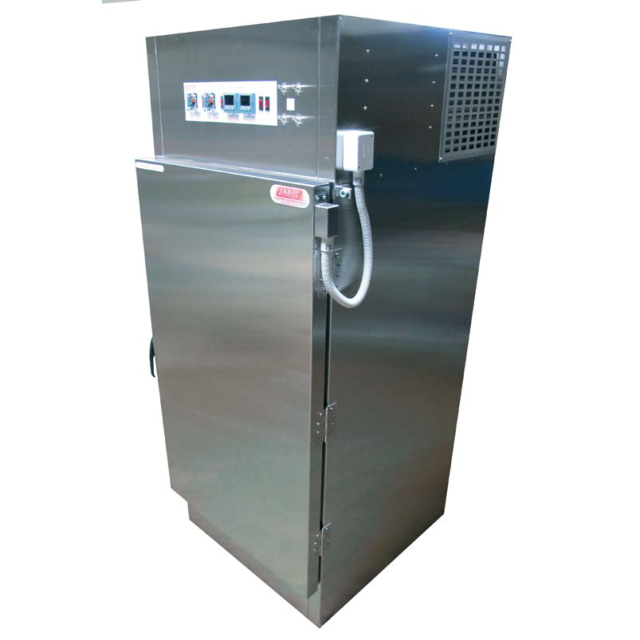

LABEC Plant Growth Chambers are fitted with internal lights and are manufactured in Australia with high quality 304 grade stainless steel for easy maintenance and excellent durability. Suitable for applications such as plant germination and culture growth or where refrigeration, heating and diurnal control is required in a single chamber.
Features:
- RCD/ ELB (earth leakage breaker)
- Over Temperature Thermostat
- Stainless Steel exterior
- Adjustable/removable shelving
- Lockable castors
- Magnetic door seals
- Optional viewing door available on all models to view samples without affecting temperature. CO2 model available.
Controller — Environmental conditions can be accurately reproduced and controlled with dynamic air flow system and unique heating system. They provide excellent temperature uniformity using a digital microprocessor based PID temperature controller which controls the temperature within the range 5°C Lights OFF / 10°C Lights ON up to +50°C and Day/Night simulation features.
Data logging — The controller can be connected via RS232/RS485 communication ports which can be connected directly to a data logger or computer to log chamber information. Software is available for programming and monitoring.
Lighting — A range of lighting configurations to suit your applications is available. Lighting can be door lighting, wall lighting, or on each shelf. The shelf lighting provides High light intensity, >,90 micromoles centre of each shelf. Labec chambers can now be supplied with T5 fluorescent lights in standard, marinestar, aquastar or grolux lights for different applications. The T5 lights use electronic ballasts which give a 1/4 more output than the standard T8 tubes.
Options — addition of options such as 7′ touch screen LCD USB data logging controller, safety toughened glass viewing window for easy viewing, programmable controllers, timers and cable access ports are also available.
Specifications:
Models Capacity Internal Dimensions (H x W D) External Dimensions (H x W D) Shelves and Lighting Weight EPG18
66L 46 x 38 x 38cm
126 x 52 x 68cm
2 x shelf with 18W wall light 85kg EPG24
160L 60 x 50 x 50cm
136 x 61 x 80cm
102kg EPG36 300L 90 x 60 x 50cm
175 x 76 x 80cm
2 x shelf with 36W wall light
135kg EPG50
500L 120 x 65 x 65cm
220 x 78 x 92cm
3 x shelf with 36W wall light
155kg EPG75
750L 130 x 100 x 60cm
210 x 112 x 87cm
6 x shelf with 36W wall light
195kg EPG120
1200L 135 x 145 x 60cm
210 x 155 x 87cm
8 x shelf with 36W wall light
210kg
375L and 1000L models available
Temperature Control Digital PID Controller
Temperature Range +5°C lights off / +10°C with lights on to 50°C Accuracy ± 1°C
Fluctuation ± 0.2°C
Sensor Pt 100 ohms Construction Heating — Electric element
Refrigerant — R134a (CFC Free)
Interior — Stainless Steel
Exterior — Stainless steel Options Glass viewing windows, castors, cable entry port, programmable temperature profiler, additional shelves, various lighting configurations to suit your applications (doors, walls, each shelf), data logger, chart recorder
Safety Over temperature alarm, Temperature protection cut off, Earth leakage breaker (ELB)
Power Supply 240V/50Hz
