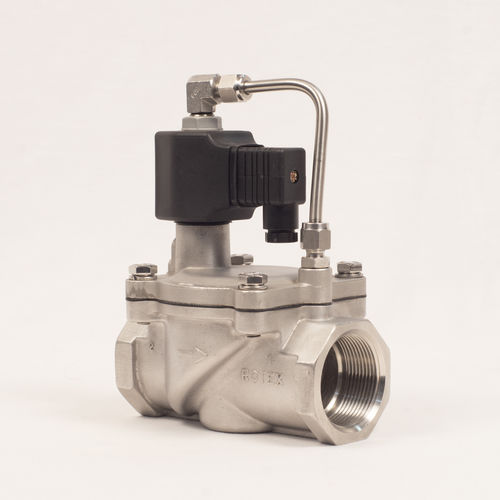

Stainless steel Diaphragm Operated Solenoid Valve Technical Specifications: MOC: Aluminium Cast (1/2′ | 3/4′ | 1′) | CF8 (SS304 Cast) | CF8M (SS316 Cast) Solenoid: Weather Proof | Explosion Proof | Intrinsically Safe Media:Air | Fuel | Inert gas | Liquid | LPG | Oil | Water Application: Deluge Valve operation | Dispensing Drain | DM Plant | Dust suppression | ETP Water | Fire Fighting Features Bubble tight shut off • Manual override provided • Vibration resistance • Suitable for high speed cycling • Speed up to 100 cycles/ min. • Life >2 million cycles About Rotex: Rotex is the largest solenoid valve manufacturer in India and a leading global solenoid valve supplier. Since 1967, Rotex has served over 7000 customers across 73 countries with its over 71,000 catalogue and over 6100 customized solenoid valve solutions. We provide service and support across the globe with our 83 channel partners and 3 international marketing offices in Netherland, UAE and Malaysia. Rotex has achieved 12 utility patents on solenoid valves and over 13 international product certifications like ATEX, UL, CE, IECEx, SIL3, INMETRO, KOSHA, GOSH etc. With all this, we have helped our customer increase their cumulative profits by 300 MUSD with our unique and customized solution providing them the edge over their competition or part level cost reductions. And we can help you too Rotex’s solenoid valve set industry standards for reliability, power efficiency and Performance.
Технические характеристики
CharacteristicsControlpilot-operatedPorts/positions2-wayFunctionNCMediumwater, air, oilBodystainless steelProcess connectionG 1/4, G 1/2, G 1 1/2, G 2, G 1, G 3/4, G 1/8, G 3/8, G 3Other characteristicsuniversal, diaphragmDN
Min.: 5 mm (0.197 in)
Max.: 50 mm (1.969 in)
Voltage
12 V
Temperature
Min.: -20 °C (-4 °F)
Max.: 80 °C (176 °F)
Pressure
Min.: 0.2 bar (2.9 psi)
Max.: 10 bar (145 psi)
0 bar (0 psi)
