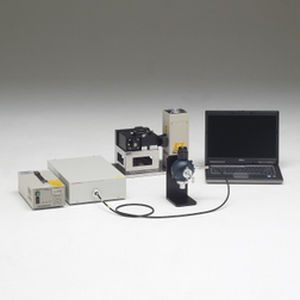

The C9920 series Absolute PL quantum yield spectrometer employ the PL (Photoluminescence) method to measure absolute quantum yields quick and accurately. Their setup comprises an excitation light source, monochromator, an integrating sphere capable of nitrogen gas flow and a CCD spectrometer for detecting the whole spectral range simultaneously. The dedicated software keeps operation easy. Two sample holders are available for thin films, powders and cuvettes holding liquid samples. This allows for the use of the C9920-02 and -03 systems in various fields like industry, biological and academic research. Specifications • Monochromatic light source：Light source : 150 W Xenon light source • Excitation wavelength : 250 nm to 800 nm • Bandwidth : 10 nm or less (FWHM) • Degradation prevention of the sample by light : Excitation light interception by the mechanical shutter • Excitation wavelength control : Manual • Multichannel spectroscope：Measurement wavelength range : 200 nm to 950 nm • Wavelength resolution :
Технические характеристики
CharacteristicsTypephotoluminescenceDomainmeasurementConfigurationcompactDetector typeCCDWavelength
Max.: 1,100 nm
Min.: 350 nm
