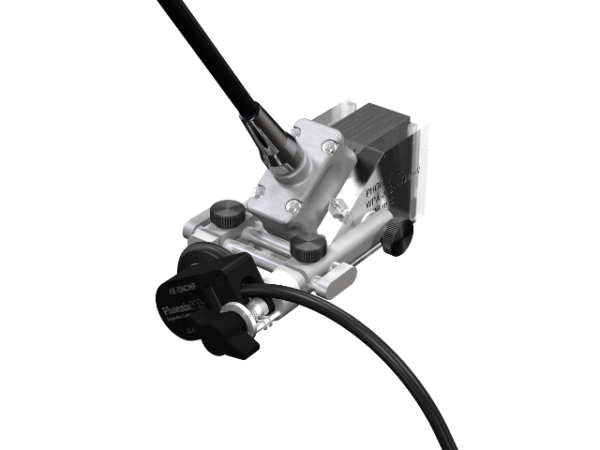

Product Information
- Simple: Economical solution that requires no tools to set up
- Precise: High resolution encoded scans for single axis applications
- Versatile: Fully adjustable for any transducer or wedge up to 55mm wide
- Strong clamp mechanism ensures no lateral movement of encoder when scanning
- Encoder is offset from the inspection area to reduce the risk of the wheel skidding on couplant
- Waterproof
- Adjustable spring loading guarantees encoder always stays in contact with inspection surface
- Compact design allows use in areas with limited access
- Can be used with any instrumentation
Specification:
- Clamp width: Max opening 55mm
- Encoder wheel diameter: 39mm
- Encoder Resolution: 33 steps/mm
- Waterproof: IP68 rated (immersion up to 1m)
- Adjustable encoder spring-loading
- Can be positioned at 0° & 90° (for B & D scans)
- Termination options available for any manufacturers instrumentation
Standard Kit:
- Encoder with 2.5m cable
- Universal clamp system
- Protective Case
Accessories:
- Phased array probes and wedges
- Phased array calibration block
