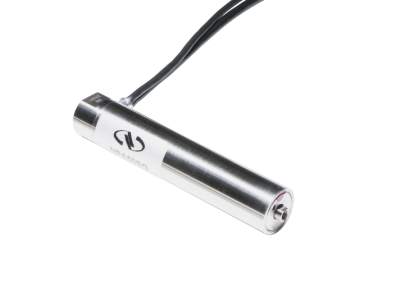

The NPA50SGV6 Vacuum Compatible Nano-Positioning Piezo Stack Actuator is ideally suited for integration into custom motion devices. It provides nanometer resolution over a 50 µm travel range with micro-second response time in a very compact housing. NPA series actuators can generate large forces up to 1000 N which makes them particularly useful for machine tools, active vibration isolation or adaptive mechanics. Their small size and high resonant frequency are suitable for scanning microscopy, laser tuning and beam steering, patch clamping or micro lithography applications. This closed-loop version features a high resolution strain-gauge position sensor for highly accurate and repeatable motion. Also, the position feedback compensates for actuator creep. The assembly is done as a full Wheatstone bridge and is temperature insensitive. The closed-loop devices can be used in either open or closed-loop control. Fastening is accomplished by M3-threads at the top and the base of the piezoelectric actuator. Like all piezoelectric devices, moment loads and side forces should be avoided. Spanner flats are provided and should be used when securing screws. Vacuum compatible to 10-6 Torr.
Use with the NPC3SG Nanopositioning Amplifier.
Технические характеристики
- Travel Range 0.05 mm
- Axial Load Capacity 1000 N
- Load Capacity, Pull 150 N
- Axial Stiffness 20 N/m
- Capacitance 5.4 F
- Resonant Frequency 8000 Hz
- Closed Loop Repeatability 20 nm
- Closed Loop Resolution 1.0 nm
- Open Loop Resolution 0.1 nm
- Closed Loop Travel Range 40 m
- Vacuum Compatibility 10-6 Torr
- Cable Length 2 m
