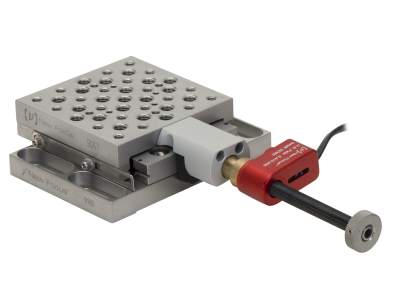

The 9067-X-P Motorized Stainless Steel Crossed-Roller Bearing Translation Stage incorporates our Picomotor actuator with our 1.0 inch X travel crossed-roller-bearing translation stage to meet your demanding photonics applications. All necessary clamps, brackets, and base plates are included so that the stage can be used right out of the box. Some assembly is required. Crossed-roller bearings provide smooth and accurate positioning for critical optical alignment applications such as fiber-alignment and high-stability positioning in laser systems. To ensure accurate linear travel, the stages use thermally matched hardened-steel, crossed-roller bearings and high-precision reference surfaces. 8-32 and 1/4-20 threaded mounting holes.
Технические характеристики
- Travel Range 25.4 mm
- Axes of Travel X
- Motorized Axes X
- Included Actuators Picomotor: 8303
- Maximum Speed 0.02 mm/s
- Minimum Incremental Motion
- Centered Load Capacity 222 N
- Vertical Load Capacity 80 N
- Bearings Crossed Roller Bearings
- Material Stainless Steel
- Feedback Open Loop
- Cable Length 2.1 m
- Connector Type 4-Pin
- Thread Type 8-32 and 1/4-20
- Platform Size 63.5 x 63.5 mm
- Operating Temperature 10 to 40°C
