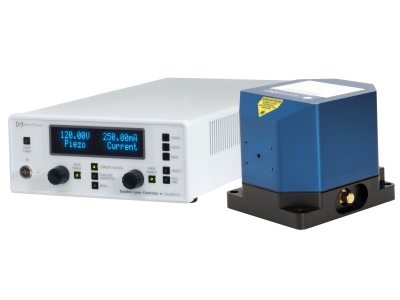

The Vortex Plus TLB-6821 Finely Tunable Laser is available for 1030-1085 nm wavelengths and offers 70 mW of power at 1064 nm and a mode-hop-free tuning range >60 GHz. The Vortex Plus is the latest addition to our precision tunable lasers providing higher power than ever, combined with the same stability, mode-hop-free tuning range, and narrow linewidth as the Vortex II. In addition, the Vortex Plus includes an SMA port for direct to diode high speed current modulation. When requesting a quote, please specify the exact center wavelength (to 0.01 nm) in vacuum. Part number includes complete laser system and the TLB-6800-LN Laser Controller. Heads and controllers can also be sold separately. Custom wavelengths are also available.
Технические характеристики
- Available Wavelengths 1030-1085 nm
- Mode-Hop Free Fine Tuning Range >60 GHz (230 pm)
- Free Space Output Power 70 mW @ 1064 nm
- Fiber-Coupled Output Power 24 mW @ 1064 nm
