| General specifications | ||
| Switching element function | PNPNO | |
| Rated operating distance | 6 mm | |
| Installation | quasi flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 4.8 mm | |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 18 mm x 18 mm x 1 mm | |
| Reduction factor rAl | 0.28 | |
| Reduction factor rCu | 0.2 | |
| Reduction factor r304 | 0.7 | |
| Reduction factor rBrass | 0.35 | |
| Nominal ratings | ||
| Installation conditions | ||
| A | in steel 1.0037 (St37): 2.4 mm in other metal: 1.2 mm | |
| B | 12 mm | |
| C | 18 mm | |
| F | 24 mm | |
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 800 Hz | |
| Hysteresis | 0.06 … 1.2 mm | |
| Reverse polarity protection | yes | |
| Short-circuit protection | pulsing | |
| Overload resistance | yes | |
| Wire breakage protection | yes | |
| Surge suppression | yes | |
| Ripple | 10 % | |
| Voltage drop | less than or equal to 2 V | |
| Repeat accuracy | 0.3 mm | |
| Operating current | 0 … 200 mA , above 70°C max. 150 mA | |
| Off-state current | less than or equal to 10 mA | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1740 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 °C (-13 … 185 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | cable PUR , 2 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| Mass | 80 g | |

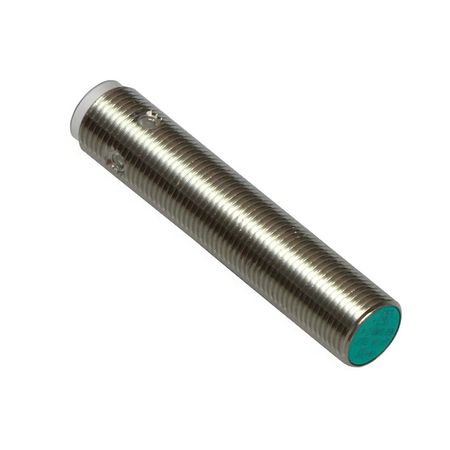

Buy Pepperl+Fuchs NEB6-12GM50-E2 with the best possible price and delivery terms on eltra-trade.com
