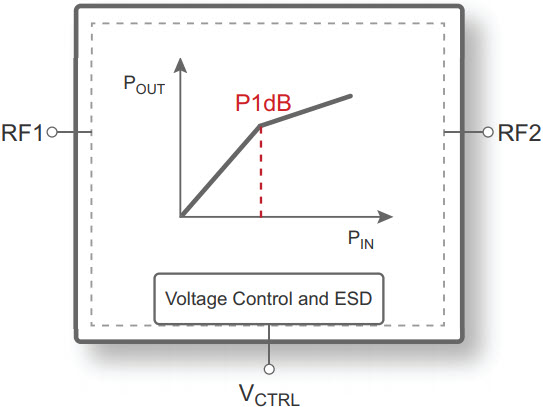

The PE45361 is a HaRP™ technology-enhanced power limiter designed for use in high performance power limiting applications in test and measurement (T&M) equipment and wireless-infrastructure transceivers and antennas. Unlike traditional PIN-diode solutions, the PE45361 achieves an adjustable input 1 dB compression point or limiting threshold via a low current control voltage (VCTRL), eliminating the need for external bias components, such as DC blocking capacitors, RF choke inductors and bias resistors.
Технические характеристики
| Part Number: PE45361 |
| Manufacturer: pSemi |
| Description: Low Threshold Limiter |
| Modes: Reflecting |
| Frequency Range Min: 10 MHz |
| Frequency Range Max: 6000 MHz |
| Adjustable Power Limiting Threshold Min: 7 dBm |
| Adjustable Power Limiting Threshold Max: 13 dBm |
| Max Power Rating: 50 dBm |
| IIP3: 37 dBm |
| Package: 12L QFN |
