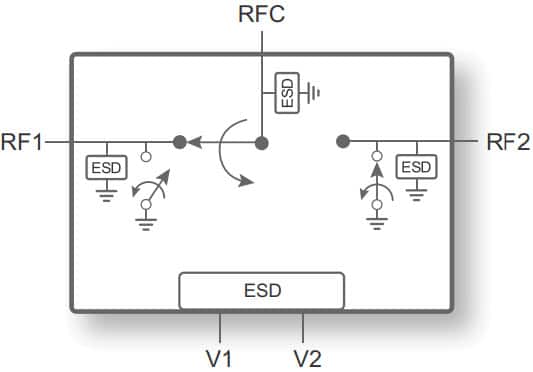

The PE42525 is a HaRP™ technology-enhanced reflective SPDT RF switch die that supports a wide frequency range from 9 kHz to 60 GHz. This wideband flip-chip switch is pin compatible to the PE42524 and the PE426525. It delivers low insertion loss, fast switching time and high isolation performance, making this device ideal for test and measurement, microwave backhaul, radar and military communications (mil-comm) applications. At 50 GHz, the PE42525 exhibits 1.9 dB insertion loss and 37 dB isolation. No blocking capacitors are required if DC voltage is not present on the RF ports.
Технические характеристики
| Part Number: PE42525 |
| Manufacturer: pSemi |
| Type >,>,RF Switch: Single Pole |
| Function: SPDT (R) |
| Impedance: 50 Ohms |
| Frequency Range Min: 0.009 MHz |
| Frequency Range Max: 60000 MHz |
| Insertion Loss Min: 0.9 dB |
| Insertion Loss Max: 2.7 dB |
| Isolation Min: 36 dB |
| Isolation Max: 80 dB |
| Power Rating: 35 dBm |
| IIP3: 48 dBm |
| Package: Flip-chip |
| Description: Wideband |
