The XDS series is the new product line of Owon based on the succesful SDS series. The performances are outstanding, with a memory depth of 20 Megapoints and 55.000 waveforms per second waveform capture rate.

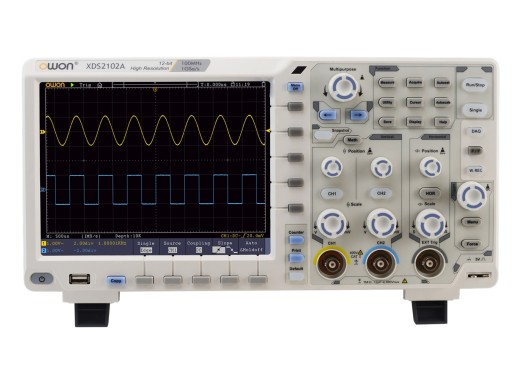

The XDS2102A has a 12 bit ADC instead of the more common 8 bit ADC. Only improving the resolution would not be as valuable if Owon would not have improved the noise floor as well. And Owon did not forget this. For this scope the vertical sensitivity begins at 1mV, instead of 5mV, and goes up untill 10V/div.
SCPI is also supported for remote operation and reading out values. The scope also has standard multi-trigger support.
Difference between 8-bit and 12-bit ADC
In the video below you can see the difference between a 8-bit converter and a 12-bit analog-digital converter.
Specifications Bandwidth 100 MHz Sample rate 1 GSa/s (12-bit) Memory depth 20 MPts Waveform capture rate up to 55,000 Wfm/s Rise time &le, 3.5 ns Channels 2 Horizontal scale 2 ns/div — 1000s/div Vertical resolution 1 mV/div — 10 V/div Maximum voltage 1 M 300 Vrms Input impedance 1 M and 15 pF Connections USB host, USB device, USB port for PictBridge, trigger, VGA and LAN Decoding (included free feature) I2C, SPI, RS232 en CAN Display 8′ LCD, 800×600 pixels Weight 2.6 kg Dimensions 340 x 177 x 90 mm
For more information, please refer to the manual below. Options
The following options are included for free with the XDS2102A:
- VGA
- LAN
- I2C, SPI, RS232, CAN
The configuration of options cannot be changed. Accessories
The Owon XDS2102A comes including the following accesories:
- Power cord
- User manual
- USB cable
- 2 probes
- Probe adjuster
