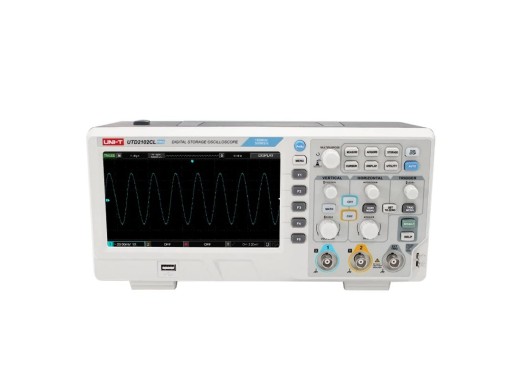

The UNI-T UTD2102CL+ is a 2 channel oscilloscope with an excellent price-performance ratio. For its price, the scope features a high bandwidth of 100MHz and a large sample rate of 1GSa/s. There is also a USB interface for storing signals and measurement results.
Specifications Bandwidth 100MHz Channels 2 Sample rate 500MSa/s Memory depth 64Kpts Waveform capture rate >=5000wfms/s Trigger types Edge, Pulse, Alternate Vertical scale 1mV/div — 20V/div Horizontal scale 2ns/div — 50s/div Display 7′ 800×480 TFT LCD Weight 2.2kg Dimensions 306 x 147 x 122mm Accessories
The UNI-T UTD2102CL+ is supplied including:
- 2 Probes
- Power Cord
- USB Cable
- PC Software
