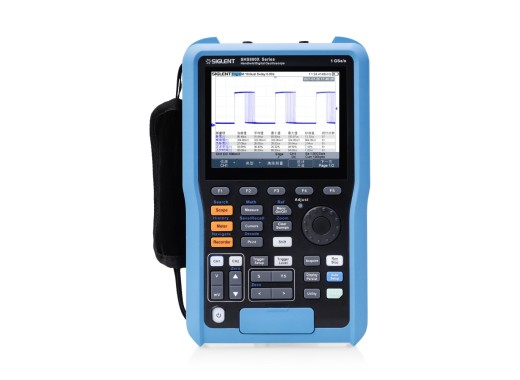

The Siglent SHS-X series, successor to the previous SHS series, are 2-channel handheld oscilloscopes with the great specifications of a stand-alone oscilloscope. The SHS820X is a 200 MHz oscilloscope with a sample rate and memory depth of 1GSa/s and 12Mpts respectively. This series of oscilloscopes is equipped with a 1 million-point FFT mathematical function that provides very high frequency resolution when observing signal spectra. Furthermore, they are also equipped with a single channel 6000 count multimeter. Aditionally, it is possible to connect the oscilloscope to a computer via the USB interfaces and log data to the internal and/or additional external memory. The SDS1000X oscilloscopes in this series feature fully shielded channels.
With its handy design and built-in battery with a 5.5 hour operating time, SHS-X series oscilloscopes are well suited for use on the road. The battery is easily exchangeable and can also be charged externally. Model overview The models within the SHS-X series differ in the following specifications: Model SHS810X SHS820X SHS1102X SHS1202X Bandwidth 100 MHz 200 MHz 100 MHz 200 MHz Rise time 1.7 ns 3.5 ns 2.0 ns 3.5 ns Vertical scale 2 mV/div-100 V/div 2 mV/div-100 V/div 5 mV/div-100 V/div 5 mV/div-100 V/div Input rating CAT III 300 Vrms, CAT II 600 Vrms CAT III 300 Vrms, CAT II 600 Vrms CAT III 600 Vrms, CAT II 1000 Vrms CAT III 600 Vrms, CAT II 1000 Vrms Channel isolation No No Yes Yes Price 689 €689.00 Excl. VAT 899 €899.00 Excl. VAT 1399 €1,399.00 Excl. VAT 1699 €1,699.00 Excl. VAT Specifications Oscilloscope Channels 2 Sample rate 1 GSa/s (single channel)
500 MSa/s (dual channel) Memory depth 12 Mpts (one channel)
6 Mpts (two-channel) Waveform capture rate 100000 wfm/s, normal mode (400000 wfm/s, sequence mode) Vertical resolution 8 bits Serial trigger/decode IIC, SPI, UART, KAN, LIN Interfaces USB host/device Sample-logger Yes (specs see data sheet) Multimeter Voltage DC: 0.01 mV — 1000 V
AC: 0.01 mV — 750 V Current DC: 0.01 mA — 10 A
AC: 0.01 mA — 10 A Resistance 0.1 Ω — 60 MΩ Capacity 0.01 nF — 400 uF Additional Functions Diode, Continuity Display 5.6′ TFT LCD (640×480) Battery (operating time) 6900 mA (5.5 hours) IP rating IP51 Dimensions 276x168x68 mm LxWxH Weight 1750 g Accessories
The SHS820X comes standard with:
- USB cable
- 2x probe (PP215)
- Power adapter
- Battery
- SCD10A adapter for current measurement
- SCD600MA adapter for current measurement
- Carrying bag
