Promotion! The Siglent SDS2354X HD now temporarily comes with the SDS2000XHD-PA power analysis option. You do not need to add this option to your cart, the oscilloscope comes already equipped with the option. This promotion is valid until October 31, 2023.

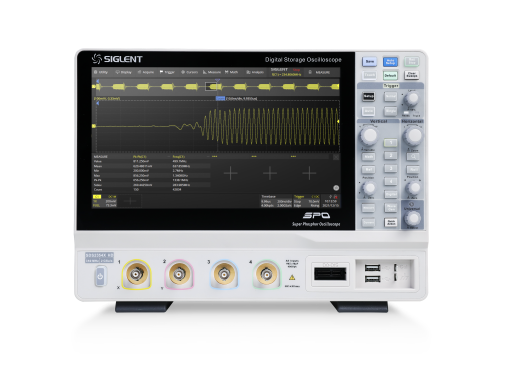

The Siglent SDS2354X HD is the 350 MHz version in the SDS2000X HD series of oscilloscopes.
The SDS2000X HD series is Siglent’s new flagship, where these 4-channel oscilloscopes are equipped with a 12-bit ADC and a very low noise floor (70 V @500 MHz), which enables them to display even very weak signals in great detail. The SDS2354X HD offers a large and bright 10.1′ screen. The large screen means there is less room for dials and buttons on the oscilloscope, but this is fully compensated for by the modern on-screen multi-touch interface. Also, this oscilloscope comes with a trigger zone function, which makes advanced triggering easier.
By default, the oscilloscope comes with a number of serial triggering and decoding options such as I2, SPI, UART, CAN and LIN. Optionally, a wide range of options are available to expand the SDS2000X HD, such as a 16-channel logic analyzer, arbitrary function generator, power analysis software and software to decode additional protocols.
Model Overview
The Siglent SDS2354X HD is part of the SDS2000X HD series. The following models are for sale from this series.
Model SDS2104X HD SDS2204X HD SDS2354X HD Bandwidth 100 MHz 200 MHz 350 MHz Rise time 3.5 ns 1.7 ns 1.0 ns Noise floor 50 V 55 V 65 V Price 2980 €2,980.00 Excl. VAT 3680 €3,680.00 Excl. VAT 4680 €4,680.00 Excl. VAT Specifications Channels 4 Memory Up to 200 Mpts per channel Waveform capture rate (max) 100,000 wfms/s (normal)
500,000 wfms/s (sequence mode) Sample rate (half of all channels in use) 2 GSa/s Sample rate (all channels in use) 1 GSa/s Vertical resolution 12 bits Display 10.1′ multi-touch screen (1024 x 600) Input impedance 1 MΩ Horizontal scale 1 ns/div — 1000 s/div Vertical sensitivity 500 V/div — 10V/div Maximum voltage 400 V (peak — peak) Connections 3x USB 2.0 Host, USB 2.0 Device, LAN, EXT (TRIG OUT, PASS/FAIL), AUX Dimensions 317.2 x 236 x 149 mm Weight 4.1 kg Options 16 channel logic analyzer This 16 channel logic analyzer allows you to analyze digital signals. The specifications of this product can be found on the page indicated to the right SPL2016 335 €335.00 Excl. VAT Info Configure Function generator This option adds a 25 MHz arbitrary function generator to the oscilloscope. SDS2000HD-FG 228.02 €228.02 Excl. VAT Info Add to Cart Power analysis This option adds a power analysis option to your oscilloscope. SDS2000HD-PA 338 €338.00 Excl. VAT Info Add to Cart Serial triggering and decoding options Serial decoding allows you to decode serial protocols such as FlexRay, MIL-STD-1553B, I2S, CAN FD, SENT and Manchester on the scope. Serial decoding 258 €258.00 Excl. VAT Info Configure Accessories
The Siglent SDS2354X HD is supplied including:
- USB cable
- Passive probes (1 per channel)
- Wireless mouse
- Power cord
- Calibration certificate
