Promotion! The Siglent SDS2204X Plus now temporarily comes with a bandwidth upgrade to 350 MHz. This promotion is valid until October 31, 2023.

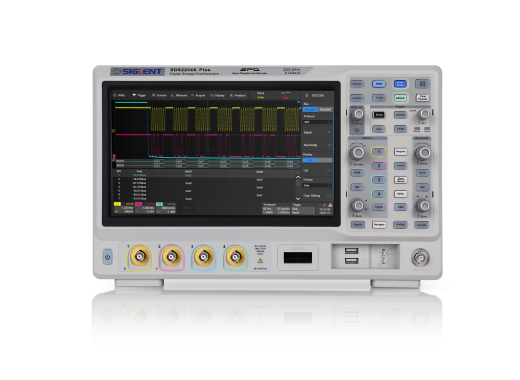

The Siglent SDS2204X Plus oscilloscope is the 4-channel 100 MHz version in the Siglent SDS2000X Plus series oscilloscopes.
The Siglent SDS2204X Plus oscilloscope offers a large and bright 10.1′ screen. Because of the large screen, there is less space for knobs and buttons on the oscilloscope, but this is fully compensated by the modern multi-touch interface on the screen.
The series also features a 10 bit ADC @100MHz (Analog to Digital Converter), which is a nice feature compared to the majority of oscilloscopes that have only 8 bits as standard. The SDS2204X Plus now also comes with a trigger zone function, which makes advanced triggering easier.
By default the scope comes with a number of serial triggering and decoding options such as I2, SPI, UART, CAN and LIN. This makes the scope a very comprehensive model, which is now even more attractive because it is equipped with a very low noise floor (80 V).
The already very complete oscilloscope can be expanded with a 16 channel logic analyser, arbitrary function generator, power analysis software, and with the software to decode additional protocols.
Model overview
The Siglent SDS2204X Plus is part of the SDS2000X Plus series. The following models are for sale from this series.
Model SDS2102X Plus SDS2104X Plus SDS2204X Plus SDS2354X Plus Bandwidth 100 MHz 100 MHz 200 MHz 350 MHz Rise time 3.5ns 3.5ns 1.7ns 1.0ns Total memory 200 Mpts 400 Mpts 400 Mpts 400 Mpts Number of channels 2 4 4 4 Price 899 €899.00 Excl. VAT 1199 €1,199.00 Excl. VAT 1899 €1,899.00 Excl. VAT 2599 €2,599.00 Excl. VAT Specifications Memory Up to 200 Mpts per channel Waveform capture rate (max) 120,000 wfms/s (normal)
500,000 wfms/s (sequence mode) Sample rate (half of all channels in use) 2 GSa/s Sample rate (all channels in use) 1 GSa/s Display 10.1′ multi-touch screen (1024 x 600) Ingress impedance 1 M Horizontal scale 1ns/div — 1000s/div Vertical sensitivity 500 V/div — 10V/div Vertical resolution 8 bits, 10 bits up to 100Mhz Maximum voltage 400 V (peak — peak) Connectors 2x USB 2.0 Host, USB 2.0 Device, LAN, EXT (TRIG OUT, PASS/FAIL) Dimensions 352 x 224 x 111 mm Weight 2 channels: 3.3kg
4 channels: 3.9kg Highlights With the large 10.1′ touchscreen display, the oscilloscope can be operated just like a smartphone. Using the exceptionally high memory depth of 200 Mpts, signals can be analysed in great detail. Thanks to a waveform capture rate of no less than 120,000 wfms/s, the oscilloscope can capture all signals with the greatest ease. Options 16 channel logic analyser This 16 channel logic analyser makes it possible to analyze digital signals. The specifications of this product can be found on the adjacent page SPL2016 335 €335.00 Excl. VAT Info Configure Function generator This option adds a 50 MHz arbitrary function generator to the scope. SDS2000XP-FG 204.96 €204.96 Excl. VAT Info Add to Cart Power analysis With this option you can add a power analysis option to your oscilloscope. SDS2000XP-PA 239 €239.00 Excl. VAT Info Add to Cart Serial triggering and decoding options Serial decoding allows you to decode serial protocols such as FlexRay, MIL-STD-1553B, I2S and CAN FD on the scope. Serial decoding 210.74 €210.74 Excl. VAT Info Configure Accessories
The Siglent SDS2204X Plus is supplied including:
- USB cable
- Passive probes (1 per channel)
- User manual
- Power cord
- Calibration certificate
