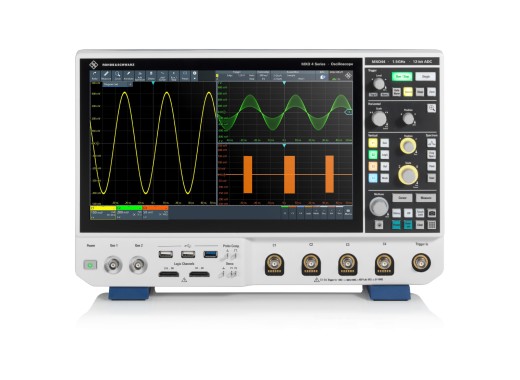

The MXO44-242 is the 200 MHz version of the MXO44 series oscilloscopes. This series of oscilloscopes features an extremely high waveform capture rate of 4.5 million waveforms/s. This combined with the 12-bit ADC (18 bit in HD mode) ensures that many small infrequent events can be observed better than with many other oscilloscopes. Furthermore, this series features a big 400 Mpoints memory depth which allows recording for long periods of time. In addition to this, these oscilloscopes also feature an FFT function with spectrum acquisition rate of 45000 FFT/s and a highly sensitive trigger function with low trigger jitter.
The MXO44 series feature a 13.3′ full HD capacitive touchscreen display with a intuitive user interface that contains for example a function search menu and remote control access over LAN. Furthermore, the MXO44 series features a VESA mount with which the oscilloscopes can be mounted. MXO4-BNDL
Rohde & Schwarz also offers the MXO4-BNDL bundel package, which includes the following:
- MXO44-242 oscilloscope
- MXO-B2415 1.5GHz bandwidth upgrade
- MXO4-PK1 application bundle, coming with:
- MXO4-B6 arbitrary generator
- MXO4-K510 low speed serial buses
- MXO4-K520 automotive protocols
- MXO4-K36 frequency response analysis (Bode plot)
Model overview Model MXO44-242 MXO44-243 MXO44-245 MXO44-2410 Bandwidth 200 MHz 350 MHz 500 MHz 1 GHz Rise time Price 7600 €7,600.00 Excl. VAT 12000 €12,000.00 Excl. VAT 15500 €15,500.00 Excl. VAT 19200 €19,200.00 Excl. VAT Specifications Channels4 Memory depth400 Mpts (per channel) Sample rate5 GS/s (on 2 channels, 2.5 GS/s on 4 channels) Waveform capture rate4500000 wfm/s Vertical resolution12 bits (18 bits in HD mode) Vertical scale0.5 mV/div — 1 V/div Horizontal scale200 ps/div — 10000 s/div InterfacesUSB Host, USB Device, LAN, HDMI Display 13.3′ TFT LCD (1920×1080, Touch-screen) Dimensions414 × 279 × 162 Weight6 kg Options There are a lot of options available for this product. Please, see the datasheet for a list of all options and contact us for ordering options. Accessories
The MXO44 series comes by default with:
- 4x passive probe
- Bag
- Power cord
