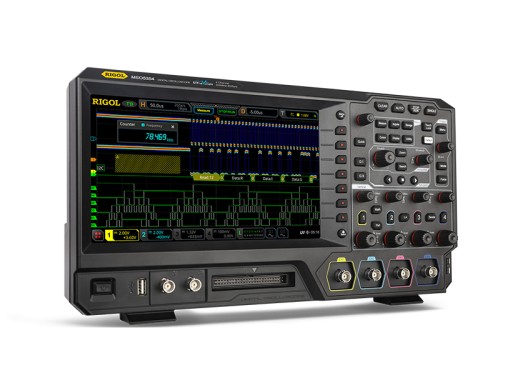

The Rigol MSO5072 is a 2-channel oscilloscope and the 70MHz version in the Rigol MSO5000 series. These oscilloscopes have a sample rate of up to 8 GS/s. The MSO5000 series oscilloscopes are so-called ‘Mixed Signal Oscilloscopes’ this means that in addition to the analog channels they also support digital channels. With the PLA2216 (Logic analyzer option) it is possible to extend these oscilloscopes with 16 digital channels with a sample rate up to 1 GSa/s. Furthermore it is also possible to extend the oscilloscopes with a serial protocol analysis bundle option. This option adds bus trigger and analysis capabilities for RS232, l2C and CAN decoding to the oscilloscopes. It also includes a dual-channel 25 MHz waveform generator and a built-in power analysis option. More information about these options can be found under the heading ‘Options’ at the bottom of this page.
The oscilloscopes in this series feature a large 9′ capacitive multi-touch screen for easy operation. With a sample rate up to 8 GSa/s it is possible to visualize very detailed signals with these oscilloscopes. Furthermore, the large memory depth makes it possible to capture long continuous signals. With a waveform capture rate up to 500,000 wfm/s, signals can be analyzed quickly and problems can be found quickly. These oscilloscopes also have 41 built-in waveform parameters, which makes it easy to perform automatic measurements. Measurement results can be transferred to a PC, tablet or screen with HDMI input using the available interfaces.
Optionally, a 16-channel digital logic probe and serial protocol analysis are available. These options are explained in more detail at the bottom of the page.
Models
The models in the MSO5000 series differ in the number of channels and the sample rate per channel.
MSO5072
MSO5102MSO5074
MSO5104
MSO5204
MSO5354 Bandwidth 70MHz
100MHz 70MHz
100MHz
200MHz
350MHz Channels 2 analog(+16 digital optional) 4 analog(+16 digital optional) Sample rate 8 GSa/s(1 channel active)
2 GSa/s(2 channels active) 8 GSa/s (1 channel active)
4 GSa/s (2 channels active)
2 GSa/s (4 channels active) Price 795.04 €795.04 Excl. VAT
942.15 Regular Price: €991.74 Now: €942.15 Excl. VAT 883.47 €883.47 Excl. VAT
999 Regular Price: €1,078.51 Now: €999.00 Excl. VAT
1619 Regular Price: €1,799.00 Now: €1,619.00 Excl. VAT
2159 Regular Price: €2,399.00 Now: €2,159.00 Excl. VAT Specifications Memory (Analog) 100 Mpts (1 channel), 50 Mpts (half of channels), 25 Mpts (all channels) Memory (Digital) 25 Mpts Rise time ≤ 5 ns Max. Waveform capture rate 500,000 wfms/s Display 9′ capacitive touch-screen, 1024×600 pixels Input impedance (Analog) 1 MΩ (Analog)
101 kΩ (Digital) Horizontal scale
(input) 5 ns/div — 1000 s/div
Vertical sensitivity
(input) 1 mV/div — 10 V/div A/D converter 8 bits resolution Maximum voltage CAT I 300 Vrms, transient overvoltage 1600 Vpk Probe support 0.01x — 50000x Connections USB 2.0 host/device, LAn, GPIB (opt.), Web remote control, Aux out, HDMI out, Probe compensation out Eleshop noise reduction rating Dimensions 367x200x130 mm Weight (without box) 3.5 Kg
For detailed specifications of the Rigol MSO5000 series the following datasheet can be consulted.
Accessories
This oscilloscope will be delivered including:
- Power cord
- USB cable
- 2/4 passive probes (equal to number of channels)
- Manual (English)
- 3 year warranty
Options
The possible options:
Logic probe (PLA2216) This probe expands the scope with 16 digital channels. This probe is especially designed for the MSO5000 series. PLA2216 297.52 €297.52 Excl. VAT Info Add to Cart Option bundle This bundle is a very complete set of extensions for the MSO5000 oscilloscopes. The bundle contains all bus trigger and analysis options available for the MSO5000 series. Also you get a 25 MHz arbitrary waveform generator and a build-in Power analysis application. For more information, please navigate to the product page of this bundle. MSO5000-bndl 613.6 €613.60 Excl. VAT Info Add to Cart
