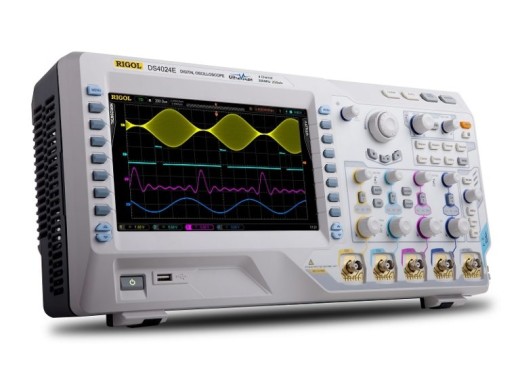

The Rigol DS4024E is a 4-channel oscilloscope and the 200 MHz version in the DS4000E series of Rigol. The DS4000E series is Rigols reply to the demand for affordable and good 4 channel scopes.With a bandwidth up to 200 MHz and 2 GS/s sample rate per channel, these scopes offer a greaat set of feeatures at an attractive price.
Signal
Apart from the hight bandwidth and fast sample rate, these scopes also offer a large signal memory per channel, and a high waveform capture rate. The scopes can record and playback up top 127,000 frames of the signal measurement. The low noise floor allow for precise measurements to be displayed on the large internal display. Connectivity
The scopes offer a variety of connections. They can be coupled to a multitude of peripherals through USB, LAN, VGA en AUX, en optionally through GPIB. In addition the scopes offer an USB connector that can be used to store data on a memory stick.
As an introductory promotion the scopes come combined with a free decoding bundle for decoding: RS232, SPI, I2C, CAN and LIN.
Models SpecificationDS4014EDS4024E Bandwidth100 MHz200 MHz Price 1660.33 €1,660.33 Excl. VAT 2156.2 €2,156.20 Excl. VAT Specifications Channels 4 Sample rate 2GS/s per channel Waveform capture rate 60.000 wfm/s Memory 14 MB/ 14Mpts (per channel). Vertical Resolution 8 Bits Rise time DS4014E: 3.5 ns / DS4024E: 1.8 ns Display 9′ TFT-LCD, 800×480 pixels 160,000 colours Input impedance 1 MΩ Verticale gevoeligheid 1 mV/div — 5 V/div Maximale spanning CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk Probe ondersteuning 0.01x — 1000x Aansluitingen USB 2.0 type A, USB 2.0 type B, LAN, pass/fail trigger Gewicht (zonder doos) 3.9 Kg
For more details on the specifications of these Rigols the data-sheet can be consulted.
Accessoires
These scopes come bundled with:
- 4 passive probes (350 MHz , type RP3300A)
- USB data cable
- Power cable
- Front panel cover
- Quick start guide
- 3 years warranty
