The DS2302A now comes with the DS2000A bundle! See below the page for more information.

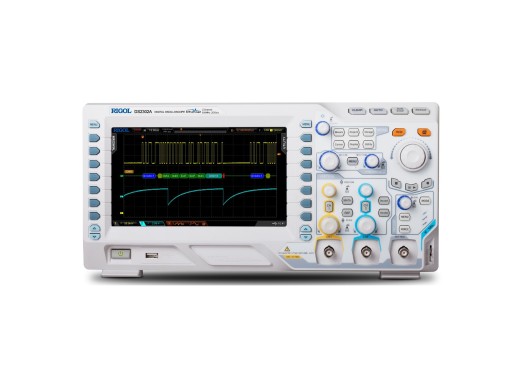

The DS2302A is a fast and versatile scope covering frequencies up to 300 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GSa/s max. sample rate and 14 Mpts. of standard memory depth to its user-friendly interface and 8 inch WVGA display and you’ve got a scope that outperforms the competition in a wide range of bench-top and field applications.
Models DS2102ADS2202ADS2302A Bandwidth 100 MHz 200 MHz 300 MHz Price 566.12 €566.12 Excl. VAT 599.17 €599.17 Excl. VAT 719 €719.00 Excl. VAT Specifications Sample rate 1 channel: 2GS/s
2 channels: 1GS/s each Memory 14 MB/ 14Mpts total Display 8′ TFT, 800×480 pixels 160,000 colors Input impedance 1 MΩ # Channels 2 Horizontal scale 5 ns/div -1000 s/div
Vertical scale 0.5 mV/div — 10 V/div A/D converter 8 bits resolutie Maximum voltage CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk Probe support 0.1x — 1000x Connections USB 2.0 type A, USB 2.0 type B, LAN, pass/fail trigger Weight 3.9 Kg Accessoires
The following accessories are supplied with the scope:
- 2 passive probes (350 MHz , type PVP2350)
- USB data cable
- 230V plug
Options
All options are included by default when you purchase your DS/MSO2000A oscilloscope!
Advanced Trigger Option With this software you activate all trigger options. (Windows Trigger, Nth Edge Trigger, Delay Trigger, TimeOut Trigger, Duration Trigger, USB Trigger) Memory expansion option With this software option you can quadruple the memory depth of your Rigol DS/MSO2000A series oscilloscope to 56 megapoints. This memory is already built in, but is not activated by default. Serial Decoding Option With this software option you can decode RS232, I²C and SPI with your Rigol DS/MSO2000A series oscilloscope. CAN Serial Decoding Option With this software option you can decode CAN with your Rigol DS/MSO2000A series oscilloscope.
