This product is temporarily equipped with the DHO4000-BND option bundle. This offer is valid until September 30th 2023!

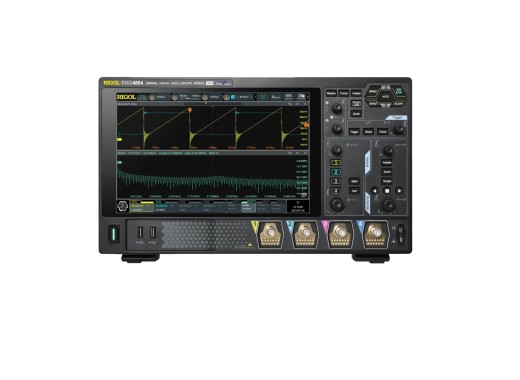

The DHO4000 series is the big brother of the DHO1000 series. The Rigol DHO4204 is a 4-channel oscilloscope and the 200 MHz version in this series. The DHO4000 series comes with a 12-bit resolution to reduce quantization uncertainty and in turn improve signal fidelity and analysis capabilities and can even be increased to 16-bit in high resolution mode. Furthermore, the oscilloscopes from this series have a large 10.1′ touchscreen and a high capture rate. With UltraAcquire mode it is possible to increase the capture rate up to 1500000 wfms/s. Additionally, multiple interface options are included as there are 2 usb 3.0 ports in the front and one in the back as well as: LAN, HDMI, Pass/Fail and trigger out. Lan web control is also supported which allows for the operation interface to be displayed on your web browser. The oscilloscopes offer extensive measurement and analysis possibilities. A large number of frames with data can be stored for extensive analysis. In addition, the oscilloscopes have an ultra low noise floor, making measurements on very small signals possible and resulting in cleaner signals.
This oscilloscope can also be extended with a bandwidth upgrade, a memory depth upgrade, several serial decoding options and a power analysis license. For these options you can contact us, price on request.
Model overview ModelDHO4204DHO4404DHO4804 Bandwidth 200 MHz 400 MHz 800 MHz Rise time 1.75 ns 875 ps 500 ps Price 2699 €2,699.00 Excl. VAT 3699 €3,699.00 Excl. VAT 4699 €4,699.00 Excl. VAT Specifications Channels4 Sample rate4 GSa/S (divided by number of active hannels) Memory depth250 Mpts (divided by number of active hannels) Waveform capture rate50.000 wfms/s Vertical scale100 μV/div — 10V/div Time base range500 ps/div — 1 ks/div Internal storage8 GB InterfacesLAN, HDMI, USB Host, USB Device, Pass/fail, Trigger out Decoding optionsI2C, SPI, UART/RS232, CAN Display10.1′ TFT LCD capacative multi-touch (1280 x 800) Dimensions358.14 x 214.72 x 120.62 mm Weight3.8 kg Options DHO4000-RLU-05 memory depth upgrade up to 500 Mpts 500 Mpts upgrade 449 €449.00 Excl. VAT Info Add to Cart DHO4000-BWU2T8 200 MHz to 800 MHz upgrade €2,199.00 Excl. VAT DHO4000-BWU2T4 200 MHz to 400 MHz upgrade €1,199.00 Excl. VAT DHO4000-BND option package (includes: HDO4000-AUTOA, AEROA, FLEXA, AUDIOA and PWRA options) €799.00 Excl. VAT DHO4000-AUTOA automotive serial triggering and analysis (CAN-FD/LIN) €299.00 Excl. VAT DHO4000-FLEXA automotive serial triggering and analysis (FlexRay) €299.00 Excl. VAT DHO4000-AEROA aerospace serial triggering and analysis (MIL-STD-1553) €299.00 Excl. VAT DHO4000-AUDIOA audio serial triggering and analysis (I2S) €299.00 Excl. VAT DHO4000-PWRA power analysis €299.00 Excl. VAT Accessories
The Rigol DHO4204 comes with the following accessories:
- 4x Probe
- Power cord
- USB cable
