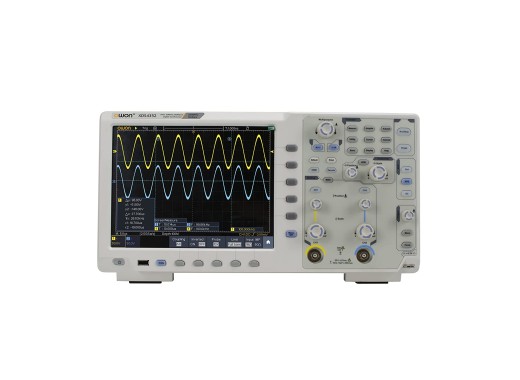

The Owon XDS4352 is a two-channel 350 MHz oscilloscope within the XDS4000 series from Owon. The XDS4352 is quite versatile as it features a high variety in functionality. Notable are the exceptionally high sample rate (5 GSa/s single-channel), memory (4 Mpts) and waveform capture rate (600,000 wfms/s), especially at this price point. The latter makes it trivial to capture transient anomalies and low-probability events such as jitter and transition errors. Additionally, the input impedance is switchable (50 or 1 M), allowing for various signal sources to be used.
All oscilloscopes within the XDS4000 series come pre-installed with 40 automatic measurement types, and several waveform math functions. One of these is a real-time FFT function for spectrum analysis, featuring a maximum frequency range of the oscilloscope analogue bandwidth. These oscilloscopes also have a single-channel waveform generator of 50 MHz, which comes with 64 built-in waveforms. Using this generator, frequency sweeps can be carried out to obtain Bode plots. This can be useful for evaluating the loop stability margins of a system, and therefore determining whether a system is stable or not.
Finally, all measurements can be read comfortably off of the 10.4′ LCD display, with the multi-touch screen making it easier to operate the oscilloscope. Model overview Model XDS4352 [XDS4354] [XDS4502] [XDS4504] Bandwidth 350 MHz 350 MHz 500 MHz 500 MHz Channels 2 4 2 4 Rise time &le, 1 ns &le, 1 ns &le, 0.7 ns &le, 0.7 ns Price 1590.91 €1,590.91 Excl. VAT Specifications Oscilloscope specifications Sample rate 5 GSa/s (single channel)
2.5 GSa/s (dual channel) Waveform capture rate 600,000 wfms/s Memory depth 400 Mpts Input impedance 1 M ±, 2% // 15 pF ±, 5 pF
50 ±, 2% Horizontal scale 500 ps/div — 1000 s/div Vertical sensitivity 1 M: 1 mV/div ~ 10 V/div
50 : 1 mV/div ~ 1 V/div A/D converter 8 bit DC gain accuracy 1 mV: ±, 3%
&ge, 2 mV: ±, 2% Max. input voltage1 M: 300 Vrms, 400 Vpeak
50 : 5 Vrms Waveform generator specifications Max. output frequency 50 MHz Sample rate 250 MSa/s Vertical resolution 14 bits Amplitude range &le, 25 MHz: 2 mVpp — 20 Vpp
&le, 50 MHz: 2 mVpp — 5 Vpp Display 10.4′ LCD, touch screen Connectivity USB (Host & Device), LAN, VGA, Trig Out, EXT Trig In Dimensions 422 x 226 x 135 mm Weight 5 kg Accessories
The XDS4532 comes by default with:
- 2 Probes
- Probe adjuster
- Power cord
- USB cable
- Q9 cable
