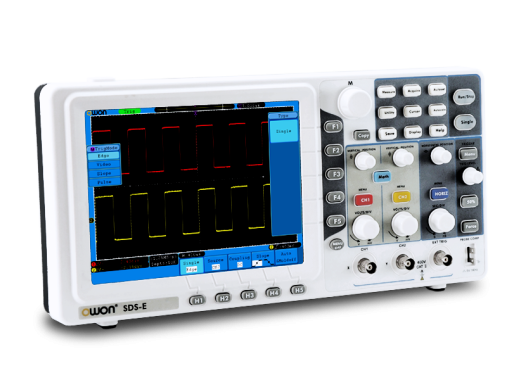

The SDS5032E oscilloscope is part of the SDS-E series, which is a competitively priced starter-series by Owon. These quick 2-channel scopes feature an 8 TFT colour-display with a resolution of 800 by 600 pixels. With the USB connection on the backside it is possible to export measurement data to the pc. With the USB on the front the data can easily be stored on an USB stick as both a screenshot and binary data. Apart from that there is a LAN connector on the device.
In comparison to the normal SDS series these SDS-E devices lack the possibility to connect a battery to the scope. The SDS-E series have a smaller memory size, 10/100KB per channel, compared to 10MB for the Owon SDS series.
Specifications Bandwidth 30 MHz Sampling rate 500 MS/s Memory (per channel) 10 KB Display 8′ TFT, 800×600 pixels, 65535 colours Input Impedance 1 MΩ Rise Time
(at input) &le,11 ns Horizontal scale
(input) 4 ns/div — 100 s/div Vertical sensitivity
(input) 5 mV/div — 10V/div Maximal voltage 400V (peak — peak) DC gain accuracy ±,3% Probe support 1x, 10x, 100x, 1000x Number of channels 2 Eleshop noise rating Weight (without box) 1.5 Kg Dimensions 348 x 170 x 78 mm Accessories
All scopes in the SDS-E-series come including:
- 2 probes: 1x / 10x
- USB cable (70 cm)
- Power cord (170cm)
- Manual
- Software (Windows 98, XP, Vista, 7)
- 3 years of warranty
Optional carrying pouch
Sturdy Owon carrying pouch can be bought on this page
