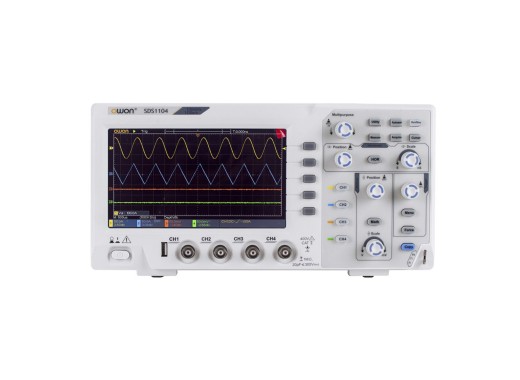

The Owon SDS1104 is a competitively priced oscilloscope with a sample rate of 1 GSa/s and a bandwidth of 100 MHz. With this oscilloscope, you have 4 channels at your disposal and it is possible to store 20 K points per measurement. There is a USB connection on the back for exporting measurement results to the PC, and a USB connection on the front for exporting to a USB memory stick.
Model overview
The models of the SDS1000 series differ mainly in the bandwidth and channels. The most important specifications are listed next to each other in the table below.
Model SDS1022 SDS1102 SDS1104 SDS1202 Channels 2 2 4 2 Bandwidth 20 MHz 100 MHz 100 MHz 200 MHz Sample rate 100 MSa/s 1 GSa/s 1 GSa/s 1 GSa/s Price 164.46 €164.46 Excl. VAT 164.46 €164.46 Excl. VAT 222.31 Regular Price: €280.17 Now: €222.31 Excl. VAT 247.11 €247.11 Excl. VAT Specifications Memory depth 20 Kpts Rise time &le,3.5 ns Trigger types Edge, Video Vertical resolution 8 bits Vertical scale 5 mV/div — 5 V/div Horizontal scale 2.0 ns/div ~ 100 s/div Measuring parameters (vertical) Vmax, Vmin, Vpp, Vtop, Vbase, Mean, Vmean, Vrms, Measuring parameters (horizontal) Period, Freq, +Wid, -Wid, Rise time, Fall time, +Dut, -Dut, Delay Display 7′ 800×480 TFT LCD Connectivity USB (Host/Device) Eleshop noise rating Dimensions 301 x 152 x 70 mm Weight 1.1 kg Accessories
The Owon SDS1104 oscilloscope comes with:
- USB cable
- Power cord
- 4 passive probes 100MHz
- Probe setting tool
