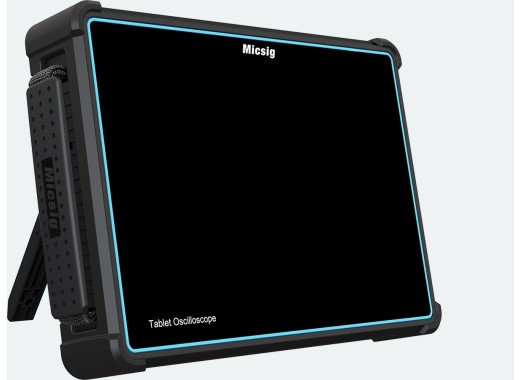

The Micsig TO3004 oscilloscope is a 4-channel 300 MHz digital oscilloscope with a full-touchscreen. A dual ADC enabling high sample rates, tablet-like properties combined with TPU+ABS protective shell and a 7500 mAh battery make this a powerful oscilloscope ideal for use at home as well as on the road. Furthermore, this oscilloscope features an ultra-deep memory of 220 Mpts, serial bus decoding/analysis, and a high waveform capture rate of 300.000 wfm/s.
The Micsig TO3004 has 31 automatic built-in measuring programs and a large 32GB internal storage. Additionally, it has a large 10′ TFT touchscreen featuring 256-level intensity grading and a color temperature display. These features show more frequent signals with more brightness or a different color respectively. The software runs on a powerful Android system and works essentially the same as a tablet. For example, you can connect to the Internet via Wi-Fi to send data, use iOS/Android remote control or take photos/videos. The scope also has an HDMI connection so that the scope can be connected for example to a beamer for a live demonstration. It is also possible to control the oscilloscope via remote control.
Model overview ModelTO1004 TO2004 TO3004 Bandwidth 100 MHz 200 MHz 300 MHz Rise time ≤ 3.5 ns ≤ 1.75 ns ≤ 1.16 ns Memory depth 110 Mpts (divided by number of active channels) 220 Mpts (single channel)
110 Mpts (all channels) 220 Mpts (single channel)
110 Mpts (all channels) Sample rate 1 GSa/S (divided by number of active channels) 2 GSa/S (single channel)
1 GSa/S (all channels) 2 GSa/S (single channel)
1 GSa/S (all channels) Waveform capture rate 300.000 wfm/s 300.000 wfm/s Bandwidth Filter 20 MHz, high pass / low pass (to 30 kHz) 20 MHz, high pass / low pass (to 30 Hz) 20 MHz, high pass / low pass (to 30 Hz) Input impedance 1 MΩ 1 MΩ / 50 Ω 1 MΩ / 50 Ω Price 643.8 €643.80 Excl. VAT 841.32 €841.32 Excl. VAT 982.64 €982.64 Excl. VAT Specifications Channels4 Vertical scale1mV/div — 10V/div Horizontal scale1 ns/div — 1 ks/div InterfacesUSB Host, USB-C, LAN, Wi-Fi, Trigger Out, grounding Decoding optionsIIC, SPI, UART/RS232, CAN, LIN Display 10.1′ TFT LCD touchscreen (1200×800) Battery7.4 V, 7500 mAh Dimensions265 x 192 x 50 mm Weight1.9 kg Accessories
The Micsig TO3004 oscilloscope comes with the following accessories:
- 4x Probe
- Battery for the oscilloscope
- Power cord
- Carry strap
- Screen protector
