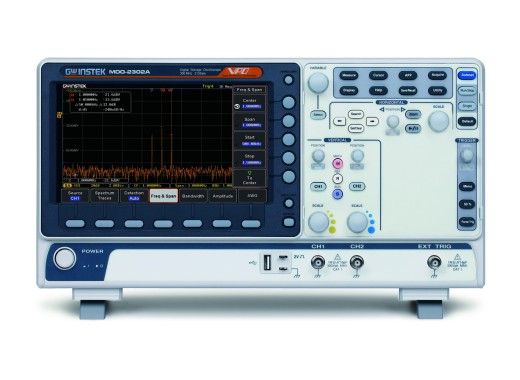

The GW Instek MDO-2302A is the 2-channel 300MHz oscilloscope in the renewed MDO-2000A series from GW Instek, which is the expansion of the existing GDS-2000E/A series.
The MDO-2000A are so-called ‘Mixed Domain’ (MD) Oscilloscopes, giving them the full functionality of an oscilloscope and spectrum analyzer in one thanks to the very strong FFT analysis to the nyquist frequency. Some of the most important features of an oscilloscope have been improved, compared to its predecessor. The MDO-2302A comes with a sample rate of maximum 2GSa/s and a memory depth of 20Mpts per channel. The series has also been extended with a 300 MHz model.
Oscilloscopes in the MDO-2000A series from GW Instek are equipped with an 8′ colour screen. Signals can be analysed quickly thanks to the waveform capture rate of 120,000 waveforms per second.
The oscilloscopes can be connected to a computer with USB and LAN to store the measured data. It is also possible to log the data for a longer period of time. With a minimum interval of 5 seconds it is possible to store the measured waveforms for a maximum of 100 hours to a USB stick in CSV format. It is also possible to print the data directly on printers that support PictBridge.
The MDO oscilloscopes have extremely low background noise in the electronics. Background noise affects the accuracy of measurement results at small signals (small-signal). The lower the background noise, the more accurate the measurement.
The oscilloscopes offer the possibility of Dual-display, in a screen it is then possible to display the entire signal and a zoomed part of it. This makes it easy to get a good picture of a signal and important parts of it.
MDO-2000AG
Are you looking for more functionality in an oscilloscope? Then we offer the GW Instek MDO-2302AG. This is an extension of the functionalities of the MDO-2000A series, with the addition of a 2-channel function generator of 25 MHz. Model overview ModelMDO-2102AMDO-2202AMDO-2302A Bandwidth 100 MHz 200 MHz 300 MHz Rise time 3.5 ns 1.75 ns 1.17 ns Price 920 €920.00 Excl. VAT 1300 €1,300.00 Excl. VAT 1690 €1,690.00 Excl. VAT Specifications Memory 20 Mpts per channel Sample rate 2 GSa/s (max) Display 8′ TFT, 800×480 pixels Input impedance 1 MΩ // 16 pF Horizontal scale 1 ns/div — 100s/div Vertical resolution 1 mV/div — 10 V/div A/D converter 8 bits resolution Maximum voltage 300V RMS, CAT I Waveform capture rate up to 120,000 wfm/s Connections USB, LAN, Go-NoGo output Weight (without box) 3.0 Kg Dimensions 384 x 127.3 x 208 mm (LxWxH) Accessories
All oscilloscopes from the MDO-2000A series are supplied including:
- Quick start guide
- Cd with manual
- Power cord
- Probes, 1 per channel
- Certificate of calibration
