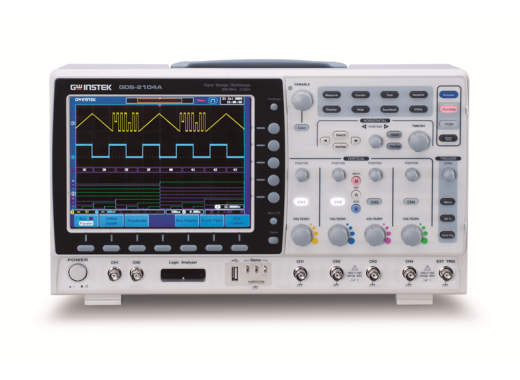

The GDS-2204A by GW Instek is a digital oscilloscope with a bandwidth of 200 MHz and has 4 channels. Unique to the GDS-2000A series is that it is equipped with a high sample rate of 2 GSa/s. This oscilloscope also has VPO (visual persistence oscilloscope) technology, which makes the update rate up to 80 000 waveforms per second. Furthermore, the GDS-2204A is equipped with an 8′ colour screen, which is easy to read. With a memory depth of 2 Mega points per channel, long signals can also be displayed. Connectivity
The oscilloscopes can be connected to a computer with USB and LAN to store the measured data. It is also possible to log the data for a longer period of time and save it to a USB stick in CSV format, for example.
Specifications Bandwidth 200 MHz Channels 4 Sampling rate 2 GSa/s Memory 2 Mpts per channel Rise time 1.75 ns Display 8′ TFT LCD SVGA color display(LED Back-light), 800×600 pixels Input impedance 1 MΩ // 16 pF Horizontal scale 1 ns/div — 100s/div Vertical resolution 1 mV/div — 10 V/div A/D converter 8 bits resolution Maximum voltage 300V RMS, CAT I Waveform capture rate up to 80 000 wfm/s Connections USB 2.0 type A, USB 2.0 type B, LAN, Go-NoGo output, RS-232C Weight (without box) 4.2 kg Dimensions 384 x 220 x 145 mm Accessories
The GDS-2204A is delivered with:
- Quick start guide
- Cd with manual
- Power cord
- 4 probes, 1 per channel
The PC software and the drivers can be downloaded free of charge from the GW Instek website.
