Features:
- 6″large size high luminance CRT
- Wider than specified frequency response
- Signal delay with delay line useful for observation of signal start point
- ALT. Triggering function (Vert Mode)
- Auto focusing according to the change of intensity
- Drift compensation circuit employed in vertical amplifier for low drift
- Jitterless and high trigger sensitivity
- TV sync. separation and hold-off circuit useful in video signal observation

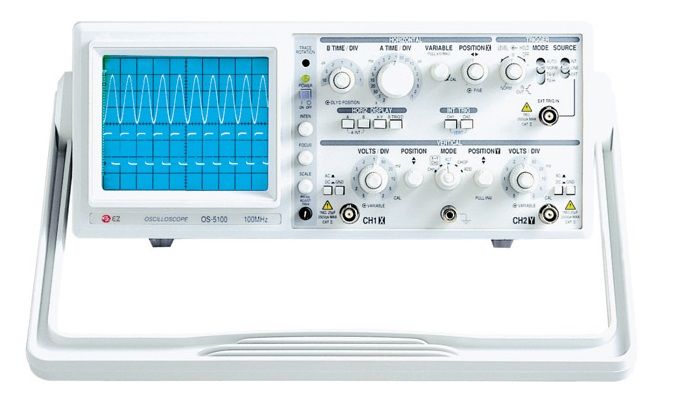

The OS-5100 is very well designed with frequency Bandwidth from 40MHz to 100MHz to satisfy both higher quality and performance and lower cost requirements in the field of school, industry, service shop and experimental support of hobbyists.
The OS-5100 features a 6-inch rectangular CRT with internal graticule 8 x 10 div(1div=1cm) and TV signal synchronization function, etc. Featuring a delayed sweep enables improved observation of any desired portions of the signal displayed with the main time base.
Технические характеристики
| Manufacturer | LG Precision |
|---|---|
| Condition | Used |
| Channels | 2 |
| Frequency | 100 MHz |
