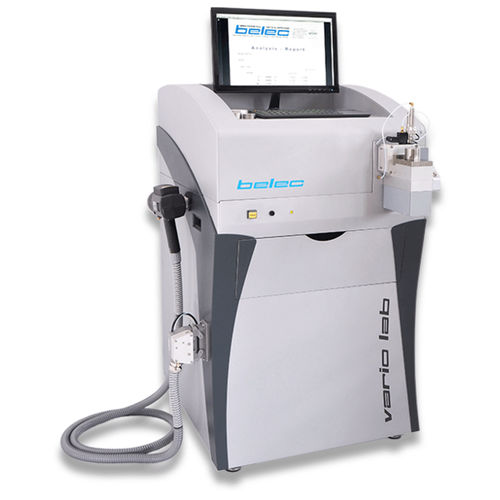

Belec has entirely re-designed the well established laboratory spectrometer. The Belec Vario Lab again sets a unique standard in terms of precision and flexibility as it has been continuously improved in order to fulfill today’s needs for metal analysis. It is – again- the most competitive in terms of flexibility as far as sample size and shape is concerned. Next to the fixed sparking stand it can be equipped with an additional sparking probe. highest analysis accuracy and precision maximum long term stability low detection limits virtually no limitations in terms of sample size and shape robust laboratory spectrometer flexibility through manifold equipping options free accessible sparking stand for larger samples operator friendly Analysis Program Belec Win21 integrated dynamic alloy database base specific drift correction samples included installation and instruction by qualified personnel very low operating costs spectrometer in Paschen-Runge mounting Rowland circle diameter 500 mm usable wavelengths 120-430 nm grating 3600 lines/mm reciprocal dispersion 0,52 nm/mm (1st order) shock resistance photomultiplier detector systems are ±0.1°C temperature stabilised for excellent long-term stability optionally 2nd spectrometer optics* up to 11 bases and 108 measuring channels possible inert gas-breathed optical chamber with gas purifier system optional optic with usable wavelengths up to 800 nm* 2 stage rotary vacuum pump large oil separator oil vapor trap vacuum gauge in front panel
Технические характеристики
CharacteristicsTypeoptical emission, spark optical emissionDomainindustrial, laboratory, foundry, process, for analysis, measurement, military, for spectroscopy, for alloy identification, for scientific applications, for oil industry applications, for the metallurgical industry, for the petrochemical industry, for metal analysis, for quality control, fast, for spectral analysis, for specific applications, for the automotive industry, inspection, for metal sorting, for productionDetector typeCCD, PMTOther characteristicsrobust, high-resolution, high-sensitivity, USB, ultra-fast, multi-function, with touch screen, digital, rugged, multi-channel, high-precision, grating, stand-alone, high-end, pre-calibrated, full-spectrumWavelength
Max.: 680 nm
Min.: 120 nm
Length
945 mm (37.2 in)
Width
680 mm (26.77 in)
Height
1,135 mm (44.69 in)
