Features:
- 16 Channel Universal Input Touch Screen Data Logger
- 7″ Touch Screen TFT Display
- 16 Analog Channel Inputs
- 16 Virtual (Math) Channels
- 8 Digital I/O (4 Inputs, 4 Outputs)
- Measures Voltage, Current, Thermocouples, RTDs, Thermistors, Strain Gage, Frequency and Pulse
- 24-Bit Analog Input Resolution
- Fast Sampling Rate–125 Samples/Sec (1 Channel)
- 4 Alarm Outputs
- Large Data Storage: 1 GB Internal Memory, 32 GB SD Card or 32 GB USB Drive
- USB Device (PC Communication) and USB Host (USB Drive, Mouse, etc.)
- Powers from Rechargeable Lithium-Ion Battery and/or AC Adaptor
- Protective Rubber Boot
- Benchtop or Wall Mount Enclosure Design

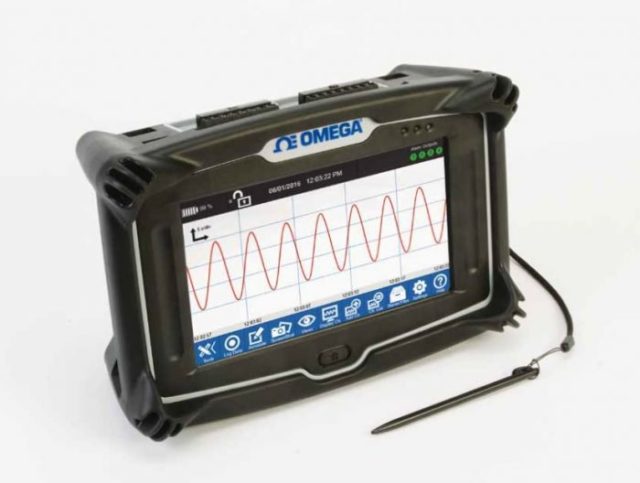

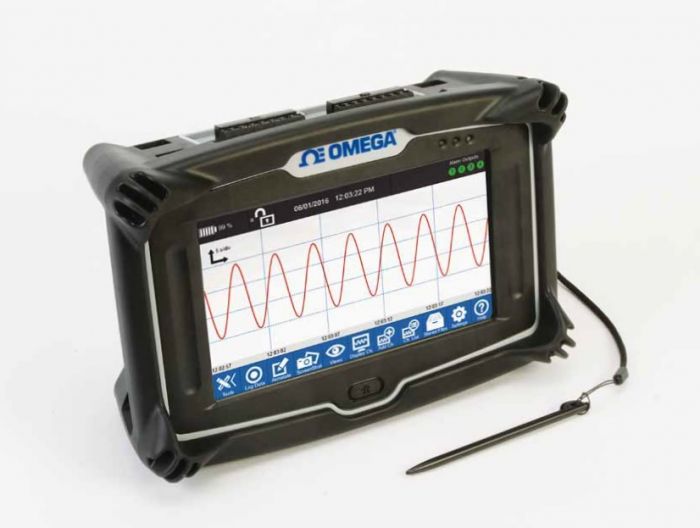

OM-DAQXL-2-NA is a 16 channel analog input portable data logger with a 7 inch resistive touch color display. All inputs are programmable and can be configured for millivolts, volts, milliamps, thermocouple, RTD, thermistor, strain gauge, or frequency. All the menus, selections, and configurations can be done from the display touch screen. The unit also has 4 digital inputs, 4 digital outputs, 4 alarm outputs, one USB host port and one USB device port. The unit also has 3 LEDs for different indications (Power, Alarm and Logging).
Технические характеристики
| Manufacturer | Omega |
|---|---|
| Condition | Used |
