Description

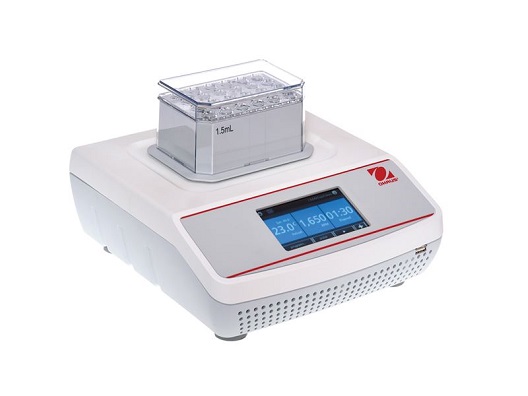

OHAUS Thermal Shakers are designed for heating and cooling applications that require consistent and precise high-speed shaking with dependable temperature control from 17C below ambient to 100C. Temperature can be user-calibrated when precision is required. Customize applications with interchangeable blocks to accommodate tubes & microplates. Intuitive touchscreen allows the user to view all steps of the program while monitoring the progress.
Applications
DNA, RNA, Cell Cultures, Hybridizations, Protein Studies
Display
4.3 inch (10.9 cm) color touchscreen Liquid Crystal Display (LCD) which can be programmed in six languages
Operation
Detachable 3-wire cord and plug (included), unit requires a block (1.5 ml block included) compatible with Eppendorf Thermomixer R blocks
Communication
USB port provides greater flexibility in data collection and transfer
Construction
Valox cool touch housing, removable plastic rack, cover and screwdriver for block removal (included)
Design Features
Hot top indicator, audible alarm, maximum temperature limiting function, temperature priority function, pulse/quick mix mode, temperature calibration mode, temperature ramp rate function
Specifications:
Motion：Orbital, 3 mm
Capacity：1 Thermal block
Temperature Range：Ambient +4C 100C
Speed Range：300 rpm 3000 rpm
Calibration：Temperature calibration
Dimensions (HxLxW)：5.2 in x 10.25 in x 9.75 in (13.2 cm x 26 cm x 24.8 cm)
Heating Rate (/min)：5C/min
Net Weight：10.8 lb (4.9 kg)
Orbit：0.1 in (3 mm)
Power：120V, 1.8A, 50/60Hz
Power Consumption：215 W
Safety Certification：TUV
Speed Accuracy：±,2%
Speed Range：300 rpm 3000 rpm
Temperature accuracy (±,)：+/- 0.5C between 20C and 45C, +/-2C below 20C and 45C
Timer：1 second 99 hours, 59 minutes
Working Environment：41F 95F, 80%RH, non-condensing (5C 35C, 80%RH, non-condensing)
