Description
Features:

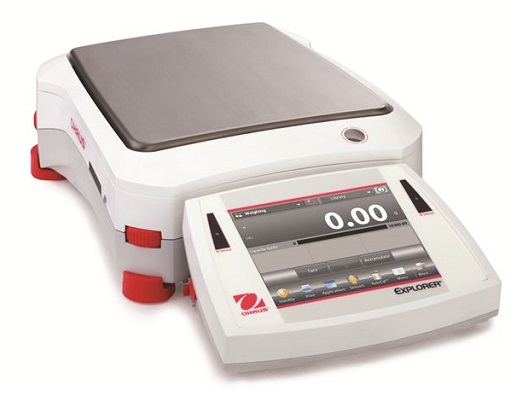

The OHAUS Explorer Series of precision balances combine modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market. These smart and intuitive balances simplify even the most complex laboratory measurements.
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC, Statistics
Display
5.7″ (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Operation
AC adapter (included)
Communication
RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Construction
Modular design, metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors and flip/sliding top door (1mg models only), illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, four touchless sensors, full housing in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages
Specifications:
- Maximum Capacity: 4,200 g
- Readability: 0.01 g
- Pan Size: 7.5 in x 8 in (190 mm x 200 mm)
- Dimensions (HxLxW): 3.9 in x 15.5 in x 9.1 in (98 mm x 393 mm x 230 mm)
- Display: Full-color 5.7 in VGA, touch screen
- Linearity ±: 0.02 g
- Minimum Weight (USP, 0.1%, typical): 16 g
- Net Weight: 9.5 lb (4.3 kg)
- Pan Construction: Stainless Steel
- Power: AC Adapter (Included)
- Repeatability (typical): 0.01 g
- Stabilization Time: 1 s
- Tare Range: To capacity by subtraction
- Working Environment: 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
