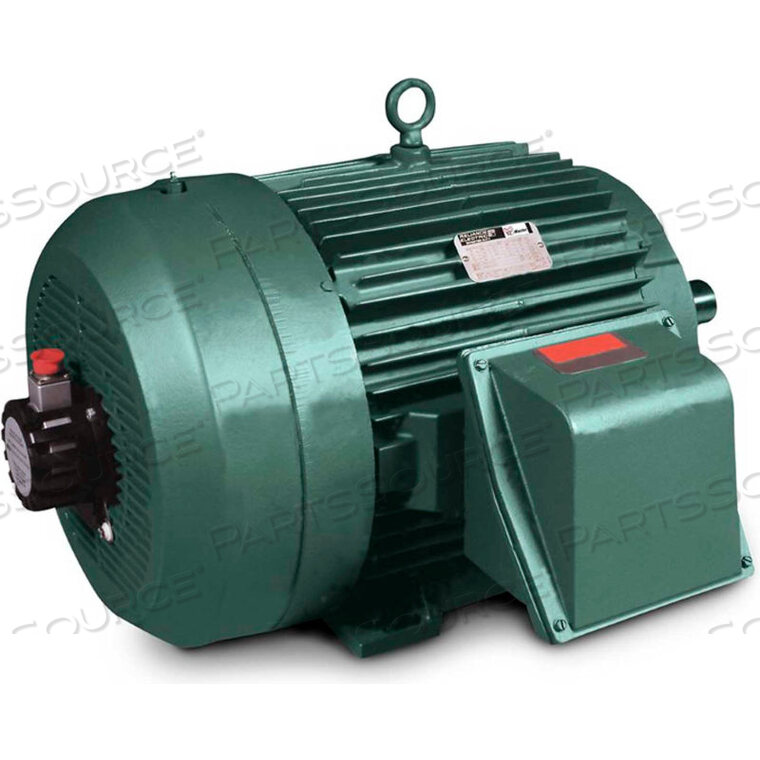

OEM#: ZDVSM4410T-4MOTOR, 125 л.с., 1800 об./мин., 3 фазы, 60 Гц, 444 зуба, TEFC, FOOT от BALDOR

6 387 075

Baldor-Reliance Motor, 125HP,1800RPM,3PH,60HZ,444T,TEFC,FOOT,Features:Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is requiredIncludes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearingInsulation system exceeds NEMA MG 1-2006, Part 31.4.4.2Continuous constant torque to zero speedTypical Applications:Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!
Артикул: HomeBALDORZDVSM4410T4 TME арт.: HomeBALDORZDVSM4410T4

P/N: ZDVSM4410T-4 Key Specs

Item
MOTOR, 125HP, 1800RPM, 3PH, 60HZ, 444T, TEFC, FOOT
OEM
BALDOR
OEM #
ZDVSM4410T-4
Condition
New OEM Original
Returnable
No
Ambient Temp C
40
Baldor Catalog Number
ZDVSM4410T-4
Brg-De-Afbma
90BC03J30X
Brg-Ode-Afbma
6318MCVL0241
C-Dimension Inches
44.62
Constant-Torq-Hertz
41.66736111
Drive End Flange
Standard
Duty
Continuous
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Frame
444T
Horsepower
125
Insulation Class
F
Is_Motor
Yes
Magnetizing-Current
62.1
Maximum-Rpm
3600
Motor Rpm 60Hz
1790
Motor-Base-Amps
150
Motor-Base-Hp
125
Motor-Base-Hz
60
Motor-Base-Rpm
1790
Motor-Base-Volts
460
Motor-Max-Amps
140
Motor-Max-Hp
125
Motor-Max-Hz
90
Motor-Max-Rpm
2685
Motor-Max-Volts
460
Phase
3
Poles
4
Reliance Number
W06252A A 001
Rotor-Inertia
40
Rpm
1790
Rpm Range
1701-1800
Service Factor
1
Spec. Number
P44G3247
Temp. Code
2
Type
P
Weight
1,744.00
