Name: OEM#: Y547ИНВЕРТОРНЫЙ ДВИГАТЕЛЬ, 215THTL7726, 10 л.с., 230/460 В, 1800 об./мин., 3 фазы, 215TC, TENV от Marathon Motors
SKU: HomeMarathon MotorsY547
Availability: InStock

OEM#: Y547ИНВЕРТОРНЫЙ ДВИГАТЕЛЬ, 215THTL7726, 10 л.с., 230/460 В, 1800 об./мин., 3 фазы, 215TC, TENV от Marathon Motors

724 950 ₽

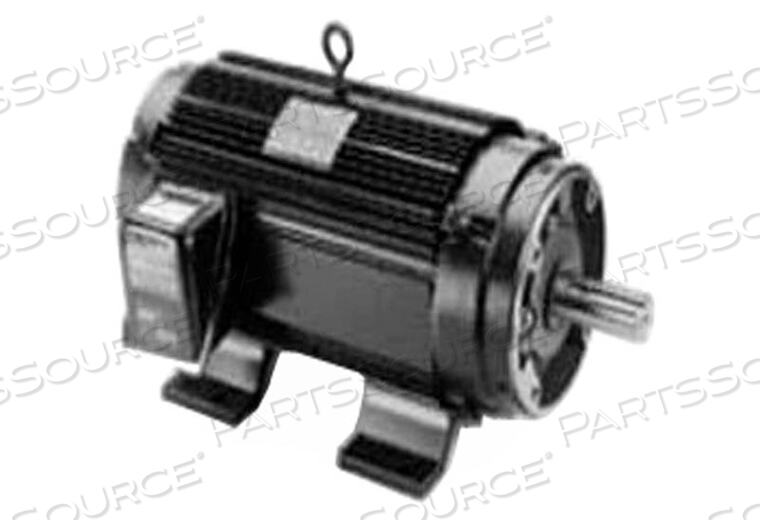

Marathon Motors Inverter Duty Motor, Y547, 215THTL7726, 10HP, 230/460V, 1800RPM, 3PH, 215TC, TENVDesigned for inverter or vector applications where up to a 1000:1 constant Torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Артикул: HomeMarathon MotorsY547 TME арт.: HomeMarathon MotorsY547

Marathon Motors

P/N: Y547 Key Specs

Item

INVERTER DUTY MOTOR, 215THTL7726, 10HP, 230/460V, 1800RPM, 3PH, 215TC, TENV

OEM

Marathon Motors

OEM #

Y547

Condition

New OEM Original

Returnable

60 Hertz Fl Amps

27/13.5

60 Hertz Fl Eff

90.20 Percent

60 Hertz Kw

7.5

60 Hertz Sf

Ambient Temp C

Assembly

F1 (F2 Modification Available)

Bearing-Drive-End

Ball

Catalog No.

Y547

Csa

Drive End Bearing Size

6309

Duty

Continuous

Enclosure

TENV

Enclosure Type

Totally Enclosed

Frame

215TC

Horsepower

Insulation Class

Inverter Speed Range

Constant 1000:1

Ip Code

Is_Motor

Yes

Kva-Code

Model Number

215THTL7726

Motor Rpm 60Hz

1800

Mounting

C-Face Rigid

Nema Design

Opposite End Bearing

Ball

Opposite End Bearing Size

6206

Orientation

Horizontal

Phase

Rpm

1800

Rpm Range

1701-1800

Starting Type

Inverter Only

Thermal Protection

Thermostats (Normally Closed)

Recognized Construction and Protector

Voltage

230/460

Weight In Lbs.

181
