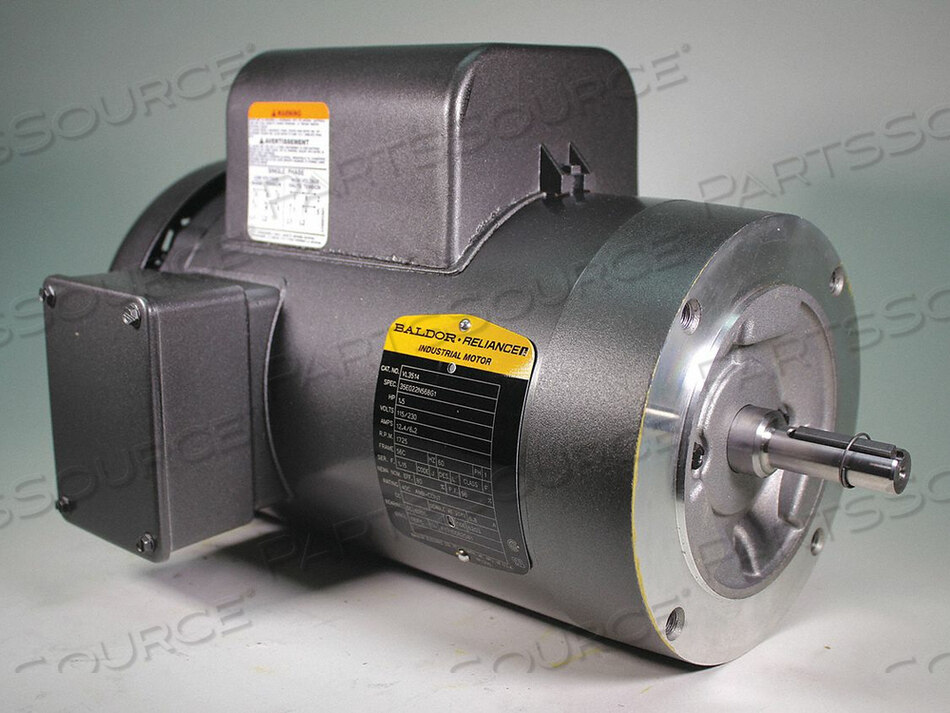

P/N: VL3514 Key Specs
Item
MOTOR 1-1/2 HP 1725 RPM 115/230V 56C
OEM
BALDOR
OEM #
VL3514
Condition
New OEM Original
Returnable
No
CC Number
CC031A
Duty
Continuous
Frame
56C
Full Load Amps
12.4/6.2
HP
1 1/2 hp
Hz
60
Includes
Conduit Box
Ins. Class
B
Length Less Shaft
12-1/4 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start/Run
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1725
Nominal Efficiency
80 %
Number of Speeds
1
Overall Length
14-1/8 in
Phase
1
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA, UL
Voltage
115/230
