P/N: UCFL211-32 Key Specs
Item

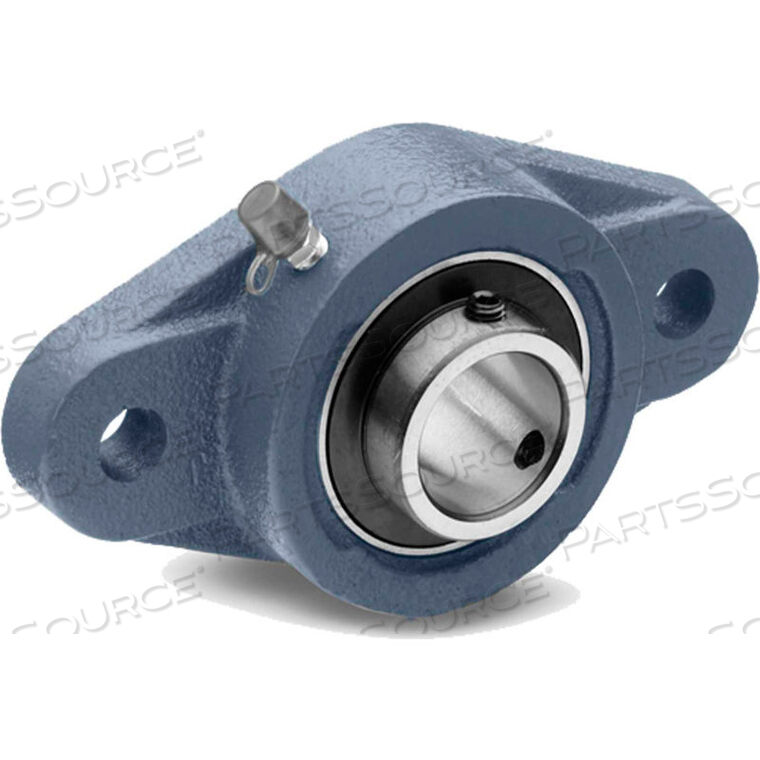

FLANGE MOUNT BEARING, 2 BOLT FLANGE, SET SCREW LOCKING, BORE 2 (50.8MM)
OEM
Tritan
OEM #
UCFL211-32
Condition
New OEM Original
Returnable
No
Bearing Material
AISI 52100 Steel
Bearing Type
Mounted Bearing Unit
Bolt Hole Size
5/8 / M16
Bore Diameter Millimeters
50.8
Construction
Cast Iron
Dynamic Load Rating (N)
9779
Insert
UC211-32
Internal Radial Clearance
0.018 — 0.043
Locking Type
Set Screw
Maximum Temperature
250 F
Mounting Hole Center Millimeter
184
Mounting Surface To Centerline Of Shaft (Mm)
18
Number Of Bolts
2
Overall Height (Mm)
58.4
Overall Length (Mm)
224
Overall Width (Mm)
130
Static Load Rating (N)
6564
Width Millimeters
130
