P/N: UCFL210-32 Key Specs
Item

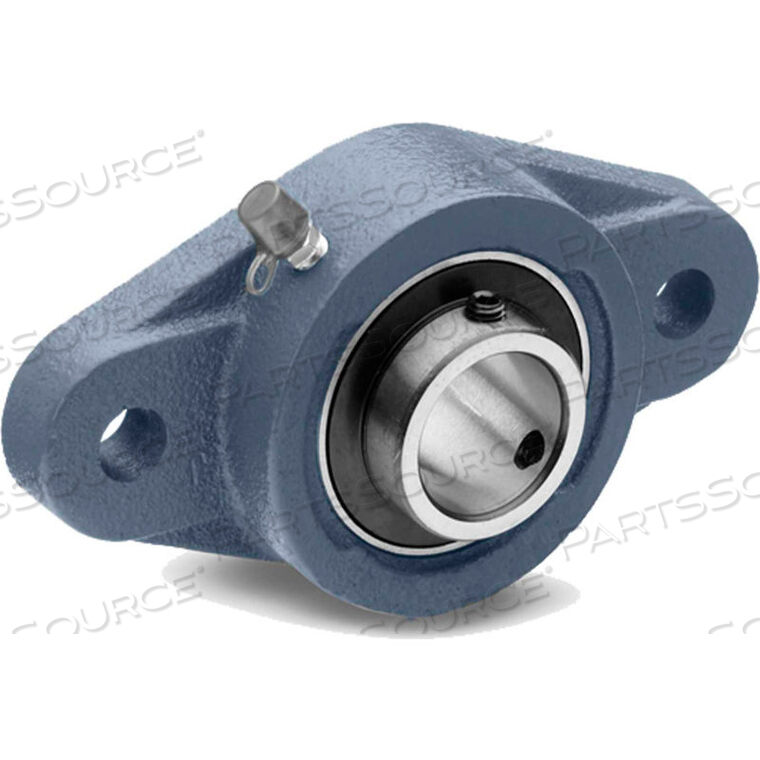

FLANGE MOUNT BEARING, 2 BOLT FLANGE, SET SCREW LOCKING, BORE 2 (50.8MM)
OEM
Tritan
OEM #
UCFL210-32
Condition
New OEM Original
Returnable
No
Bearing Material
AISI 52100 Steel
Bearing Type
Mounted Bearing Unit
Bolt Hole Size
5/8 / M16
Bore Diameter Millimeters
50.8
Construction
Cast Iron
Dynamic Load Rating (N)
7868
Insert
UC210-32
Internal Radial Clearance
0.014 — 0.036
Locking Type
Set Screw
Maximum Temperature
250 F
Mounting Hole Center Millimeter
157
Mounting Surface To Centerline Of Shaft (Mm)
15
Number Of Bolts
2
Overall Height (Mm)
54.6
Overall Length (Mm)
197
Overall Width (Mm)
115
Static Load Rating (N)
5216
Width Millimeters
115
