P/N: UCF207-20 Key Specs
Item

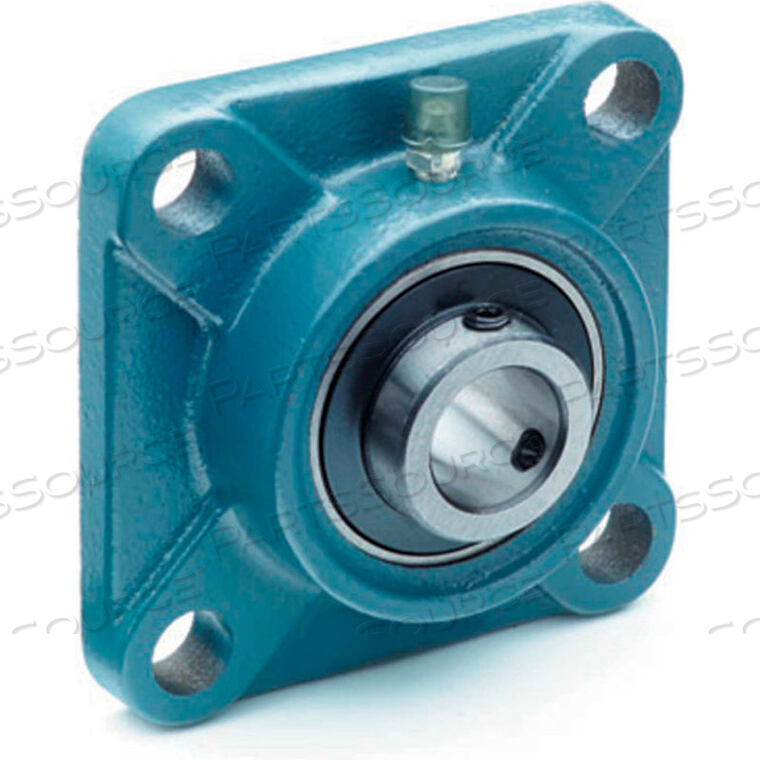

FLANGE MOUNT BEARING, 4 BOLT FLANGE, SET SCREW LOCKING, BORE 31.75 MM
OEM
Tritan
OEM #
UCF207-20
Condition
New OEM Original
Returnable
No
Bearing Material
AISI 52100 Steel
Bearing Type
Mounted Bearing Unit
Bolt Hole Size
7/16 / M12
Bore Diameter Millimeters
31.75
Construction
Cast Iron
Dynamic Load Rating (N)
5777.59
Insert
UC207-20
Internal Radial Clearance
0.013 — 0.033
Locking Type
Set Screw
Maximum Temperature
250 F
Mounting Hole Center Millimeter
92
Mounting Surface To Centerline Of Shaft (Mm)
19
Number Of Bolts
4
Overall Height (Mm)
44.4
Overall Length (Mm)
117
Overall Width (Mm)
117
Static Load Rating (N)
3439.58
Width Millimeters
117
