P/N: UBIP2020 Key Specs
Item

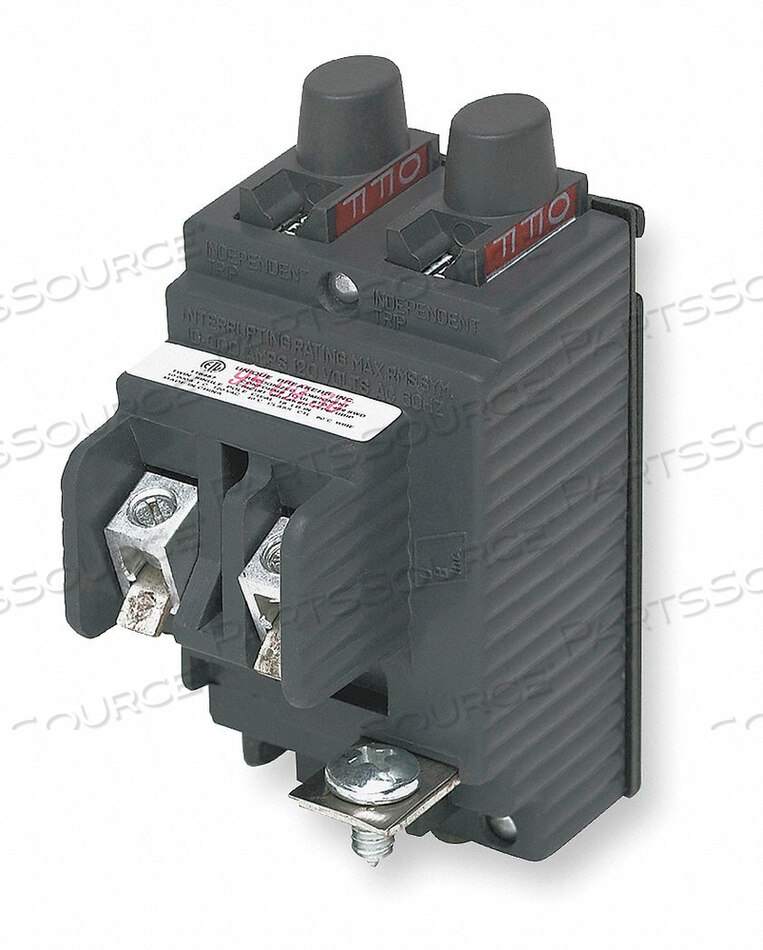

CIRCUIT BREAKER 20/20A BOLT ON 120V 1P
OEM
Connecticut-Electric
OEM #
UBIP2020
Condition
New OEM Original
Returnable
No
AC Voltage Rating
120V AC
Amps
20/20
Circuit Breaker Actuator
Push-to-Reset
Circuit Breaker Mounting Style
Bolt On
Circuit Breaker Type
Tandem
Compatible Panelboard/Load Center Series
L250-PL14
DC Voltage Rating
Not Rated
Depth
2.92 in
For Use With
Pushmatic and Bulldog Load Centers
Frame Size
100A/HACR
Length
1.84 in
Max Air Rating
10kA at 120V AC
Max Operating Temperature
250 Degrees F
Max Wire Size
8 AWG
Min Operating Temperature
0 Degrees F
Min Wire Size
14 AWG
Number of Poles
1
Phase
1
Series
UBIP
Standards
ETL Listed, UL Listed
Terminal Connection
Lug
Width
1.5 in
