P/N: UBIA40NI Key Specs
Item

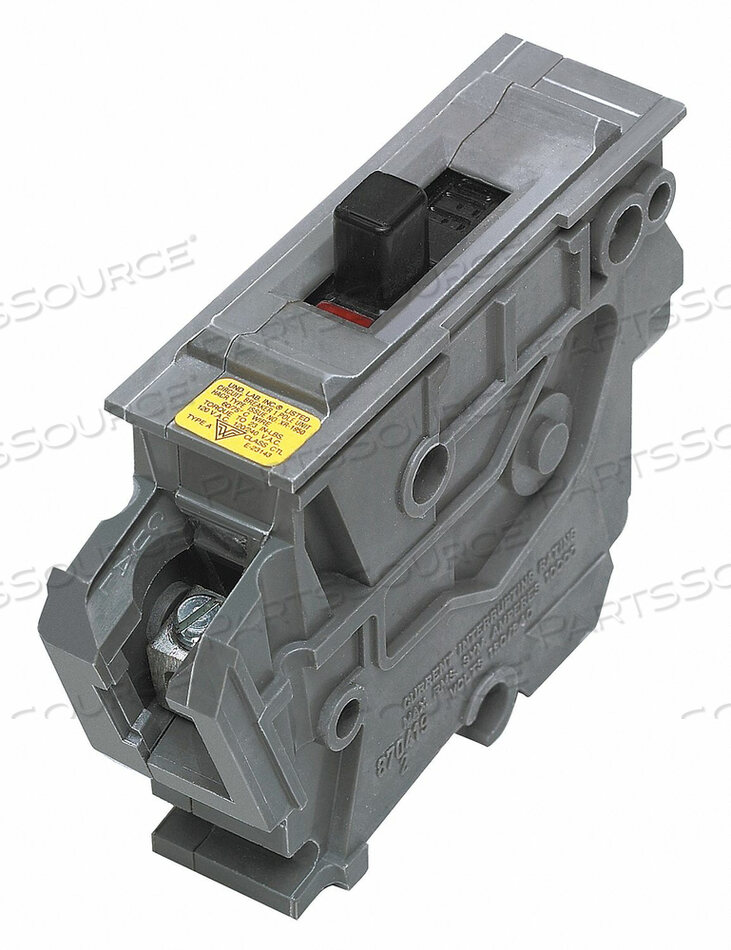

CIRCUIT BREAKER 40A PLUG IN 120V 1P
OEM
Connecticut-Electric
OEM #
UBIA40NI
Condition
New OEM Original
Returnable
No
AC Voltage Rating
120V AC
Amps
40
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Circuit Breaker Type
Standard
Compatible Panelboard/Load Center Series
Type A
DC Voltage Rating
Not Rated
Depth
2.73 in
For Use With
Wadsworth Load Centers
Frame Size
100A/A
Length
3.76 in
Max Air Rating
10kA at 120V AC
Max Operating Temperature
250 Degrees F
Max Wire Size
12 AWG
Min Operating Temperature
0 Degrees F
Min Wire Size
12 AWG
Number of Poles
1
Phase
1
Series
UBIA
Standards
ETL Listed, UL Listed
Terminal Connection
Lug
Width
1 in
